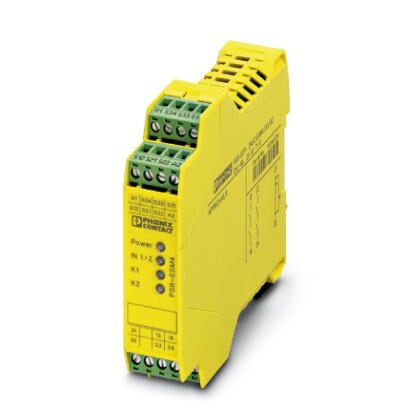

Phoenix Contact PSRSCP24UCESM42X11X2 Safety Relay

Phoenix Contact PSRSCP24UCESM42X11X2 Safety Relay Specifications:

• Packing unit: 1 pc
• Weight per Piece (excluding packing): 220.0 g
• Custom tariff number: 85364900
• Country of origin: Germany
• Utilization restriction: EMC: class A product, see manufacturer's declaration
• Width: 22.5 mm
• Height: 99 mm
• Depth: 114.5 mm
• Ambient temperature (operation): -20 °C ... 55 °C
• Ambient temperature (storage/transport): -40 °C ... 70 °C
• Shock: 15g
• Vibration (operation): 10 Hz ...150 Hz, 2g
• Maximum altitude: ≤ 2000 m
• Nominal input voltage UN: 24 V AC/DC
• Input voltage range in reference to UN: 0.85 ... 1.1
• Typical input current at UN (AC): 140 mA
• Typical input current at UN (DC): 65 mA
• Voltage at input/start and feedback circuit: approx. 24 V DC
• Typical response time: 20 ms
• Typical release time (single-channel): 45 ms
• Typical release time (two-channel): 10 ms
• Concurrence input 1/2: ∞
• Recovery time: 1 s
• Status display: Green LED
• Max. permissible overall conductor resistance: approx. 50 Ω
• Contact type: 2 enabling current paths, 1 signaling current path
• Contact material: AgSnO2, + 0.2 µm Au
• Minimum switching voltage: 15 V AC/DC
• Maximum switching voltage: 250 V AC/DC
• Limiting continuous current (N/O contact): 6 A
• Inrush current, minimum: 25 mA
• Maximum inrush current: 6 A
• Sq. Total current: 72 A
• Interrupting rating (ohmic load) max. (24 V DC, τ = 0 ms): 144 W
• Interrupting rating (ohmic load) max. (48 V DC, τ = 0 ms): 288 W
• Interrupting rating (ohmic load) max. (110 V DC, τ = 0 ms): 77 W
• Interrupting rating (ohmic load) max. (220 V DC, τ = 0 ms): 88 W
• Interrupting rating (ohmic load) max. (250 V AC, τ = 0 ms): 1500 VA
• Maximum interrupting rating (inductive load) (24 V DC, τ = 40 ms): 48 W
• Maximum interrupting rating (inductive load) (48 V DC, τ = 40 ms): 40 W
• Maximum interrupting rating (inductive load) (110 V DC, τ = 40 ms): 35 W
• Maximum interrupting rating (inductive load) (220 V DC, τ = 40 ms): 35 W
• Switching capacity min.: 0.4 W
• Output fuse: 10 A gL/gG NEOZED (N/O contact)
• Relay type: Electromechanical relay with forcibly guided contacts
• Mechanical service life: Approx. 10,7 cycles
• Net weight: 192.1 g
• Mounting type: DIN rail mounting
• Degree of protection: IP54, IP20
• Min. degree of protection of inst. location: IP54
• Mounting position: any
• Connection method: Screw connection
• pluggable: Yes
• Conductor cross section solid min.: 0.2 mm²
• Conductor cross section solid max.: 2.5 mm²
• Conductor cross section flexible min.: 0.2 mm²
• Conductor cross section flexible max.: 2.5 mm²
• Conductor cross section AWG min.: 24
• Conductor cross section AWG max.: 12
• Stripping length: 7 mm
• Screw thread: M3
• Stop category: 0
• Safety Integrity Level (SIL) IEC 61508 (High demand): 3
• Safety Integrity Level (SIL) IEC 61508 (Low demand): 3
• Performance level (PL) EN ISO 13849: e
• Category EN ISO 13849: 4
• Safety Integrity Level Claim Limit (SIL CL) EN 62061: 3
