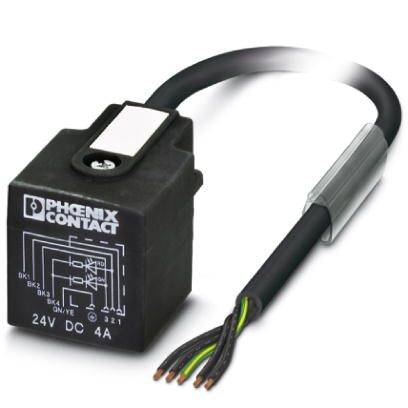

Phoenix Contact 1435085 Sensor Actuator Cable

Phoenix Contact 1435085 Sensor Actuator Cable Specifications:

• Packing unit: 1 pc
• GTIN: 4046356413442
• Weight per Piece (excluding packing): 100.000 g
• Custom tariff number: 85444290
• Country of origin: Poland
• Length of cable: 1.5 m
• Stripping length of the free conductor end: 50 mm
• Central screw valve connector: M3 x 29
• Ambient temperature (operation): -20 °C ... 85 °C (valve plug)
• Degree of protection: IP65
• Rated current at 40°C: 4 A
• Rated voltage: 24 V AC / 24 V DC
• Number of positions: 5
• Color handle area: black
• Insulation resistance: ≥ 100 MΩ
• Standards/regulations: Valve connector EN 175301-803
• Status display: 2 LEDs
• Protective circuit/component: unwired
• Overvoltage category: III
• Degree of pollution: 3
• Torque: 0.6 Nm (Valve connector)
• Flammability rating according to UL 94: V0
• Valve plug contact material: CuSn
• Valve plug contact surface material: Sn
• Valve plug contact insert material: PA 6
• Material housing valve plug: TPU
• Sealing material: TPU (Seal molded)
• Cable type: PUR halogen-free black
• Cable type (abbreviation): PUR
• Cable abbreviation: Li9Y11Y-HF
• UL AWM style: 20549
• Conductor cross section: 5x 0.5 mm²
• AWG signal line: 20
• Conductor structure signal line: 28x 0.15 mm
• Core diameter including insulation: 1.5 mm ±0.05 mm (Signal line)
• Wire colors: Black 1, black 2, black 3, black 4, green/yellow
• Overall twist: 5 cores, twisted
• External sheath, color: black-gray RAL 7021
• External cable diameter D: 5.3 mm ±0.02 mm
• Smallest bending radius, fixed installation: 26.5 mm
• Smallest bending radius, movable installation: 53 mm
• Number of bending cycles: 15000000
• Bending radius: 50 mm
• Traversing path: 0.9 m
• Traversing rate: 5 m/s
• Acceleration: 30 m/s²
• Outer sheath, material: PUR
• Material conductor insulation: PP
• Conductor material: Bare Cu litz wires
• Insulation resistance (cable): min. 20 MΩ*km
• Conductor resistance (cable): 39 Ω/km (at 20 °C)
• Nominal voltage, cable: ≤ 300 V
• Test voltage, cable: ≥ 1200 V
• Special properties (cable): Flexible cable conduit capable, Silicone-free, Free of substances which would hinder coating with paint or varnish
• Flame resistance (cable): in accordance with DIN UL-Style 20549
• Halogen-free (cable): in accordance with DIN VDE 0472 part 815
• Resistance to oil (cable): in accordance with DIN EN 60811-2-1
• Other resistance (cable): Highly resistant to acids, alkaline solutions and solvents, hydrolysis and microbe resistant, largely oil-resistant, partly UV-resistant in accordance with DIN EN ISO 4892-2-A
• Ambient temperature (operation) (cable): -40 °C ... 80 °C (cable, fixed installation), -20 °C ... 80 °C (cable, flexible installation)
• China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
