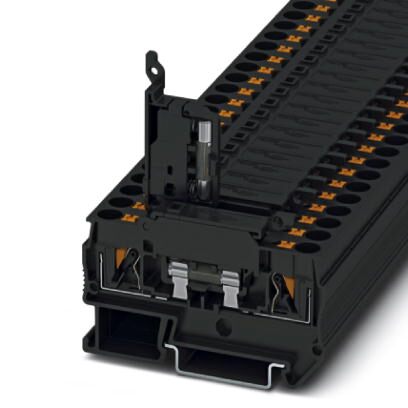

Phoenix Contact PTC4HESI5X20 Fuse Modular Terminal Block

Phoenix Contact PTC4HESI5X20 Fuse Modular Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Nominal cross section: 4 mm²
• Color: black
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Fuse: G / 5 x 20
• Fuse type: Glass / ceramics / ...
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation: max. 1.6 W (With single arrangement of the fuse terminal block in the event of overload)
• Maximum power dissipation_2: max. 1.6 W (With interconnected arrangement of several fuse terminal blocks in the event of overload)
• Maximum power dissipation_3: max. 4 W (With single arrangement of the fuse terminal block in the event of a short-circuit)
• Maximum power dissipation_4: max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit)
• Connection in acc. with standard: IEC 60947-7-3
• Maximum load current: 6.3 A (the current is determined by the fuse used)
• Nominal current IN: 6.3 A
• Nominal voltage UN: 500 V
• Rated operating voltage: 250 V
• Open side panel: Yes
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Back of the hand protection: guaranteed
• Finger protection: guaranteed
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 2, bogie mounted
• Test frequency: f1= 5 Hz to f2= 250 Hz
• ASD level: 6.12 (m/s² 2/Hz)
• Acceleration: 3.12 g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis
• Shock test result: Test passed
• Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
• Shock form: Half-sine
• Acceleration_2: 30g
• Shock duration: 18 ms
• Number of shocks per direction: 3
• Test directions_2: X-, Y- and Z-axis (pos. and neg.)
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 8.2 mm
• Length: 67.8 mm
• Height NS 35/7,5: 42.8 mm
• Height NS 35/15: 50.3 mm
• Conductor cross section solid min.: 0.2 mm²
• Conductor cross section solid max.: 6 mm²
• Conductor cross section flexible min.: 0.2 mm²
• Conductor cross section flexible max.: 4 mm²
• Conductor cross section AWG min.: 24
• Conductor cross section AWG max.: 10
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
• Connection method: Push-in connection
• Stripping length: 10 mm ... 12 mm
• Internal cylindrical gage: A4
• China RoHS: Environmentally friendly use period: unlimited = EFUP-e
• China RoHS_2: No hazardous substances above threshold values
