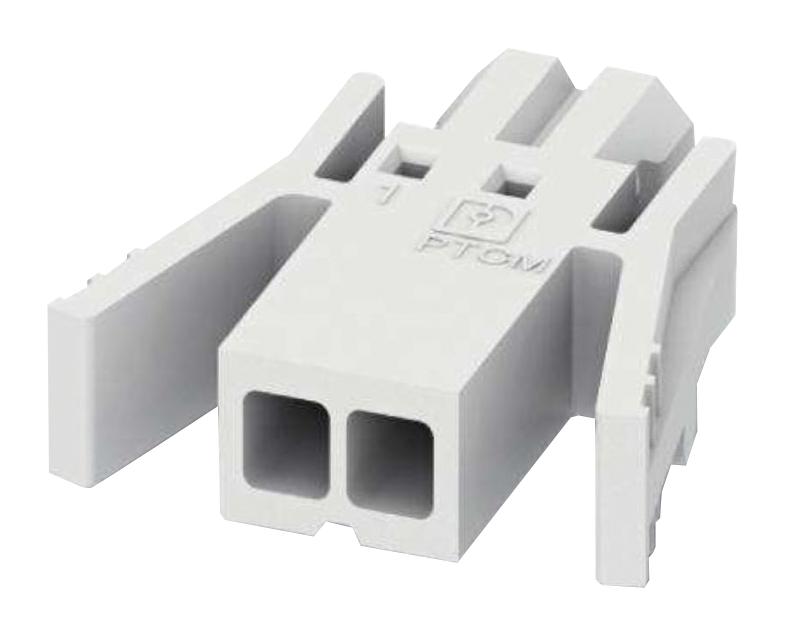

Phoenix Contact PTCM052PL25WH PCB Connector
The PCB connector is a compact, white plastic crimp connection designed for reliable wiring of circuit boards. It features a 2.5 mm pitch, two positions, and a rated current of 6 A with an insulation voltage of 160 V. It offers easy-to-use, secure locking, and high durability through tested mechanical and climatic standards. Suitable for industrial and automation applications, it supports flexible conductors from 0.14 mm² to 0.75 mm² (AWG 22-18), ensuring efficient, safe, and long-lasting electrical connections in various environmental conditions.
Phoenix Contact PTCM052PL25WH PCB Connector Specifications:
- Pitch: 2.5 mm
- Number of positions: 2
- Rated current: 6 A
- Rated insulation voltage: 160 V
- Rated surge voltage: 2.5 kV
- Conductor cross section flexible: 0.14 mm² to 0.75 mm²
- Conductor cross section AWG: 22-18
- Flammability rating: UL 94 V-0
- Housing material: PA (Polyamide)
- CTI: 600
- Temperature range (operation): -40°C to 105°C
- Dimensions: Length 16.2 mm, Width 29.46 mm, Height 3.9 mm
- Package quantity: 250 pieces
- Certification: cULus Recognized, IEC standards compliance
- Durability: 25 insertion cycles, withstands environmental testing
- Environmental safety: China RoHS compliant
Buy the Phoenix Contact Series PTSM PCB Connector: PTCM052PL25WH
Purchase the Phoenix Contact PTCM052PL25WH PCB connector online today for a high-quality, reliable connection solution. Its compact white design, 2-position configuration, and secure crimp connection make it ideal for industrial automation, electronic wiring, and control systems. Engineered for durability and safety, this connector supports flexible conductors from 0.14 mm² to 0.75 mm² with a rated current of 6 A and insulation voltage of 160 V. Buy now to ensure safe, efficient, and enduring electrical connections in your projects.
Get Phoenix Contact PTCM052PL25WH today—built for precision, reliability, and long-lasting durability in circuit board connections.
Frequently Asked Questions
Where can I buy Phoenix Contact PTCM052PL25WH?
You can click on the BUY or RFQ button to purchase PTCM052PL25WH from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTCM052PL25WH?
You can download the PTCM052PL25WH datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTCM052PL25WH?
Phoenix Contact
