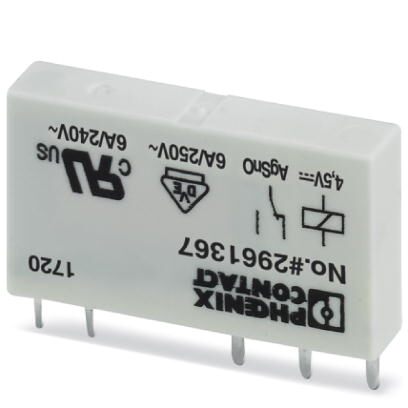

Phoenix Contact RELMR45DC21 Single Pole Miniature Power Relay
The PHOENIX CONTACT REL-MR- 4,5DC/21 is a plug-in miniature power relay designed for reliable performance in diverse industrial environments. Its key features include safe isolation according to DIN EN 50178, a high degree of protection up to RT III, and power contacts capable of handling up to 6A. This relay is ideal for applications requiring compact size, robust performance, and secure switching capabilities. It's commonly used in automation systems, control circuits, and other industrial machinery where reliable power distribution is essential.
Phoenix Contact RELMR45DC21 Single Pole Miniature Power Relay Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 6.000 g
- Custom tariff number: 85364900
- Country of origin: Czech Republic
- Width: 5 mm
- Height: 28 mm
- Depth: 15 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Degree of protection: RT III
- Nominal input voltage UN: 4.5 V DC
- Input voltage range in reference to UN: see diagram
- Typical input current at UN: 38 mA
- Typical response time: 5 ms
- Typical release time: 2.5 ms
- Coil resistance: 119 Ω ±10 % (at 20 °C)
- Power dissipation for nominal condition: 0.17 W
- Contact type: 1 PDT
- Type of switch contact: Single contact
- Contact material: AgSnO
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 5 V (at 100 mA)
- Min. switching current: 10 mA (at 12 V)
- Maximum inrush current: 10 A (4 s)
- Limiting continuous current: 6 A
- Interrupting rating (ohmic load) max.: 140 W (at 24 V DC)
- Switching capacity: 2 A (at 24 V, DC13)
- Motor load according to UL 508: 1/4 HP, 240 - 277 V AC (N/O contact)
- Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
- Operating mode: 100% operating factor
- Mechanical service life: 2x 10^7 cycles
- Mounting position: any
- Connection method: Solder connection
- Standards and Regulations - Connection in acc. with standard: CUL
- Standards/regulations: IEC 60664, EN 50178, EN 61810-1
- Pollution degree: 3
- Overvoltage category: III
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
