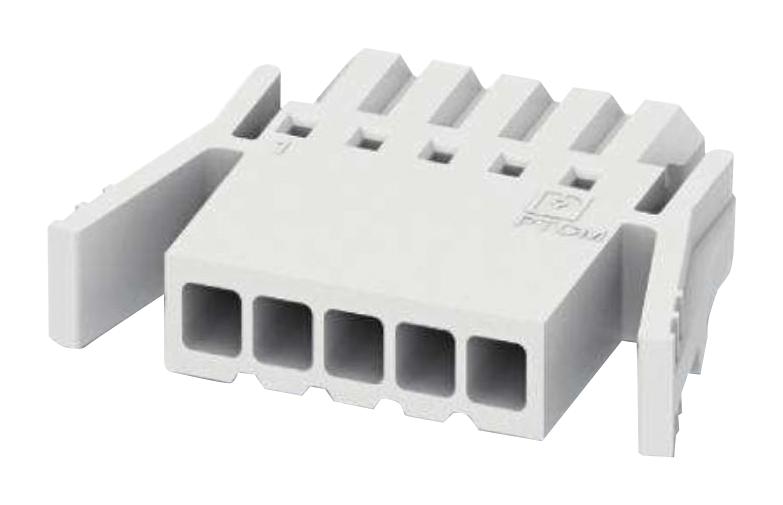

Phoenix Contact PTCM056PL25WH PCB Connector
The PTCM 0.5/6-PL-2.5 WH is a compact printed-circuit board connector designed for reliable electronic connections. It features a white durable housing, a pitch of 2.5 mm, and supports a maximum current of 6 A. With a rated voltage of 160 V and rated surge voltage of 2.5 kV, it offers high safety margins. The connector accommodates flexible conductors of 0.14 mm to 0.75 mm cross-section or AWG 6 to 18, ensuring ease of assembly and maintenance in various electronic and automation applications.
Phoenix Contact PTCM056PL25WH PCB Connector Specifications:
- Rated current: 6A
- Rated insulation voltage: 160V
- Rated surge voltage: 2.5 kV
- Conductor cross section: 0.14 mm² to 0.75 mm² or AWG 6 to 18
- Stripping length: 4.14 mm to 4.5 mm
- Housing material: PA, flammability rating UL 94 VO
- Dimensions: Length 16.2 mm, Width 19.46 mm, Height 3.9 mm, Pitch 2.5 mm
- Temperature range for assembly: -5°C to 100°C, storage/transport: -40°C to 70°C
- Insulating material group 1, CTI 600
- IP rating: IP10, with environmental and climatic resistance
- Approval: cULus recognized, Ex approvals, IEC standards compliance
Buy the Phoenix Contact Series PTSM PCB Connector: PTCM056PL25WH
Discover the reliable, compact PCB connector designed for medical, automation, and electronic device applications. With a 2.5 mm pitch and high current capacity, this connector provides secure crimped connections for flexible conductors ranging from 0.14 mm² to 0.75 mm² or AWG 6 to 18. Its durable insulating housing ensures long-term performance, meeting international standards. Ideal for assembly in tight spaces, it offers easy installation, high safety, and environmental resistance, making it a preferred choice for modern electronic systems.
Get Phoenix Contact PTCM056PL25WH today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy Phoenix Contact PTCM056PL25WH?
You can click on the BUY or RFQ button to purchase PTCM056PL25WH from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTCM056PL25WH?
You can download the PTCM056PL25WH datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTCM056PL25WH?
Phoenix Contact
