Phoenix Contact PTFIX18X25BK Distribution Block
The PTFIX 18x2.5 distribution block is a versatile, space-saving terminal connector that allows for quick, tool-free push-in connections with 18 connections. Made for DIN rail mounting, it features a black flame-retardant PA insulator, rated for 500 V and 24 A. Its compact size with dimensions of 46.5 mm width, 21.2 mm height, and 28.2 mm length makes it suitable for modern control panels. Compatible with wire sizes from 26-12 AWG and with robust overvoltage and fire-resistant properties, it ensures reliable electrical connections in demanding environments.
Phoenix Contact PTFIX18X25BK Distribution Block Specifications:
- Connection method: Push-in connection
- Number of connections: 18
- Nominal voltage: 500 V
- Maximum load current: 24 A
- Rated surge voltage: 6 kV
- Insulating material: PA (flame rating UL 94V-0)
- Dimensions: Width 46.5 mm, Height 21.2 mm, Length 28.2 mm
- Wire cross-section: 0.14 mm² - 4 mm² (AWG 26 - 12)
- Temperatures: -60°C to +130°C (insulation)
- Standards: IEC 60998-2-2, UL 94V-0
- Fire safety: UL, CSA recognized, DIN EN 45545-2 R22, R23, R24, R26 HL1-HL3

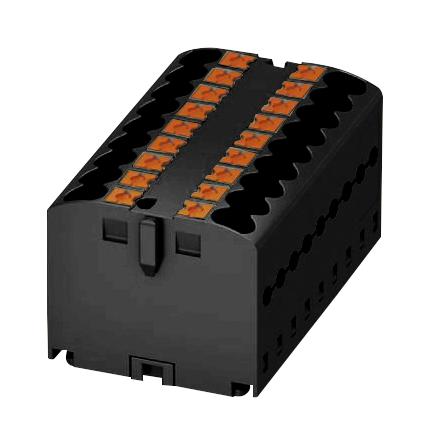

Buy the Buy Phoenix Contact Distribution Block PTFIX 18X2,5 BK Part Number PTFIX18X25BK Online
Secure your electrical connections with the Phoenix Contact Distribution Block, offering 18 push-in connections for quick installation. This robust, DIN rail-mountable terminal block rated for 500 V and 24 A ensures high safety standards and efficient wiring. Its flame-retardant PA material and UL 94V-0 rating provide fire safety in demanding environments. The compact size with space-saving design makes it ideal for modern control panels and automation systems. Easily connect wires from 26 to 12 AWG without tools, streamlining your installation process.
Order your Phoenix Contact Series PTFIX 18X2,5 BK distribution block today and ensure reliable, space-efficient connections with easy push-in technology.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX18X25BK?
You can click on the BUY or RFQ button to purchase PTFIX18X25BK from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX18X25BK?
You can download the PTFIX18X25BK datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX18X25BK?
Phoenix Contact
