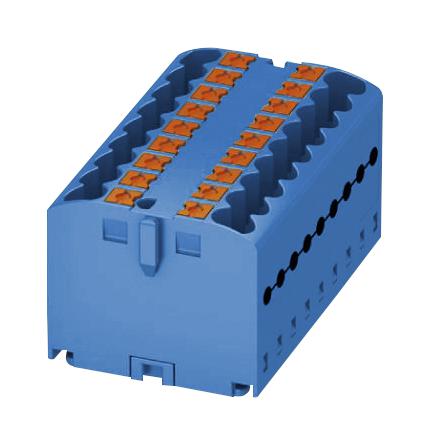

Phoenix Contact PTFIX18X25BU Distribution Block
The distribution block PTFIX 18X2,5 BU is a blue push-in connection terminal block designed for quick, tool-free conductor connections. It offers 18 connection points, suitable for solid and flexible conductors with cross-sections from 0.14 mm² to 4 mm² or AWG 26 to 12. It features DIN rail mounting compatibility, ideal for space-saving wiring in control and automation applications. Made from insulating PA material, rated for 500 V and 24 A, it supports reliable electrical performance with robust safety standards, including UL 94V-0 flammability rating and fire protection for rail vehicles.
Phoenix Contact PTFIX18X25BU Distribution Block Specifications:
- Connection method: Push-in connection
- Number of connections: 18
- Rated voltage: 500 V
- Maximum load current: 24 A
- Cross section: 0.14 mm² - 4 mm², AWG 26 - 12
- Width: 46.5 mm
- Height: 21.2 mm
- Material: PA (Polyamide)
- Flammability rating: UL 94V-0
- Rated surge voltage: 6 kV
- Protection class: Fire protection for rail vehicles (DIN EN 45545-2) R22, HL1-HL3
- Temperature index: 130°C
- Environmentally friendly use period: unlimited
- Standards: UL Recognized, CSA, cUL Recognized
- Dimensions: Width 46.5 mm, Length 28.2 mm, Height 21.2 mm
Buy the Phoenix Contact Series PTFIX Distribution Block: PTFIX 18X2,5 BU
Purchase the Phoenix Contact PTFIX distribution block online to streamline your control panel wiring. This highly reliable, space-saving terminal block features 18 push-in connections, rated for 500 V and 24 A, ensuring quick, tool-free conductor installation. Its durable PA housing provides excellent insulation and flame resistance, meeting stringent safety standards for industrial and rail applications. Easily mountable onto DIN rails or adhesives, it reduces installation time and enhances organized wiring. Ideal for automation, control panels, and durable industrial connections, order now for dependable performance.
Get Phoenix Contact PTFIX 18X2,5 BU today—built for reliable and space-efficient automation wiring solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX18X25BU?
You can click on the BUY or RFQ button to purchase PTFIX18X25BU from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX18X25BU?
You can download the PTFIX18X25BU datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX18X25BU?
Phoenix Contact
