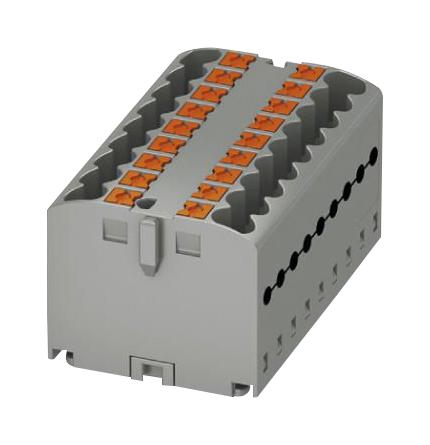

Phoenix Contact PTFIX18X25GY Distribution Block
The distribution block PTFIX 18X2.5 GY is a gray, compact terminal block designed for efficient and reliable wiring in electrical control panels. It features push-in connection technology for tool-free conductor attachment, allowing quick and easy installation. Suitable for snap mounting onto DIN rails, it offers space-saving transverse mounting and is rated for a maximum current of 24 A at 500 V. Made of PA material, it complies with fire safety standards, and its robust design ensures durability in demanding environments, ideal for industrial automation and control applications.
Phoenix Contact PTFIX18X25GY Distribution Block Specifications:
- Color: Gray
- Number of connections: 18
- Connection method: Push-in
- Rated current: 24 A
- Rated voltage: 500 V
- Flammability rating according to UL 94: VO
- Material: PA
- Width: 46.5 mm
- Height: 21.2 mm
- Length: 28.2 mm
- Flame test method: DIN EN 60695-1 1-10
- Surge voltage: 6 kV
- Maximum power dissipation: 0.77 W
- Conductor cross section: 0.14 mm² - 4 mm² (solid), 26 - 12 AWG
- Stripping length: 8 mm - 10 mm
- Standards: IEC 60998-2-2
- Fire protection: DIN EN 45545-2 R22, R23, R24, R26
- Operating temperature: -60°C to +130°C
- Dimensions: Width 46.5 mm, Length 28.2 mm, Height 21.2 mm
Buy the Phoenix Contact Series PTFIX Distribution Block: 3273308
Order the Phoenix Contact PTFIX distribution block online today and enjoy easy, tool-free wiring with push-in technology. Its compact design, DIN rail mounting, and high current capacity make it ideal for industrial automation, control panels, and wiring harnesses. The robust PA housing ensures durability and safety standards compliance, while space-saving transverse mounting optimizes panel layouts. Whether you need 18 connections at 24 A and 500 V or reliable electrical performance, this distribution block offers quick installation, clear wiring, and long-term reliability in demanding environments.
Get Phoenix Contact PTFIX 18X2,5 GY today—built for precision and long-lasting durability in industrial automation and wiring systems.
