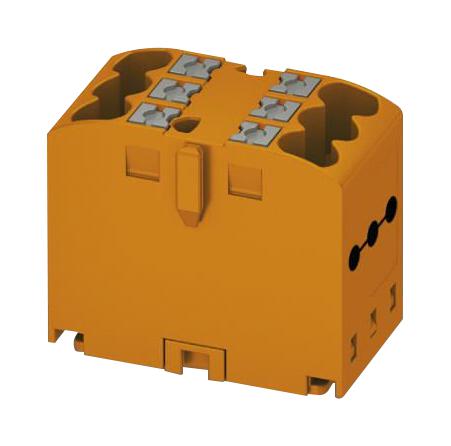

Phoenix Contact PTFIX6X25OG Distribution Block
The distribution block PTFIX 6X2.5 OG is a compact, orange-colored terminal connector designed for efficient wiring in automation and control systems. It features push-in connection technology for tool-free conductor attachment, benefits include quick installation, clear wiring via color variants, and versatile mounting options like DIN rail, adhesive, or direct mounting. With a nominal voltage of 500 V, a current capacity of 24 A, and compatible with conductor sizes from 0.14 mm² to 4 mm², it ensures reliable electrical connections in industrial environments. Its robust insulation and flame-retardant materials meet safety standards for rail and industrial applications.
Phoenix Contact PTFIX6X25OG Distribution Block Specifications:
- Nominal Voltage: 500 V
- Nominal Current: 24 A
- Connection Method: Push-in connection
- Number of connections: 6
- Cross section: 0.14 mm² - 4 mm²
- Conductor AWG: 26 - 12
- Width: 15.6 mm
- Height: 21.2 mm
- Color: Orange
- Insulating Material: PA (Polyamide)
- Flammability rating: UL 94 V-0
- Maximum power dissipation: 0.77 W
- Rated surge voltage: 6 kV
- Standards compliance: UL, CSA, cUL Recognized
- Fire protection for rail vehicles: DIN EN 45545-2 R22 HL1-HL3
- Stripping length: 8 - 10 mm
Buy the Phoenix Contact Series PTFIX Distribution Block: PTFIX6X25OG
Purchase the Phoenix Contact PTFIX distribution block online today and streamline your wiring process. Featuring push-in technology for quick, tool-free conductor connections, it ensures safe, reliable electrical connections. Its compact size saves space on DIN rails, and multiple mounting options provide flexible installation in industrial environments. Suitable for both solid and flexible conductors with a cross section of 0.14 mm² to 4 mm², it meets key safety standards and is ideal for automation, rail vehicles, and control systems. Get yours now for efficient wiring.
Order your Phoenix Contact Series PTFIX distribution block today and ensure reliable, space-saving electrical connections for industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX6X25OG?
You can click on the BUY or RFQ button to purchase PTFIX6X25OG from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX6X25OG?
You can download the PTFIX6X25OG datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX6X25OG?
Phoenix Contact
