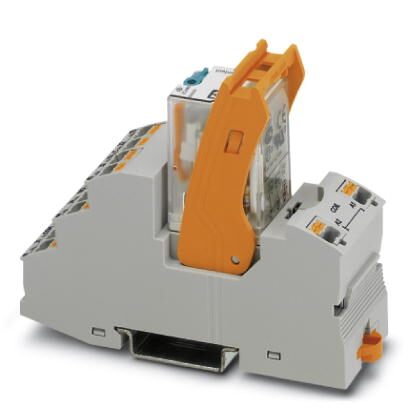

Phoenix Contact RIF2RPTLDP24DC2X21 24V DC Power Relay Module
The PHOENIX CONTACT RIF-2-RPT-LDP-24DC/2X21 relay module is designed for robust industrial applications requiring reliable power switching. This module combines a relay base, power contact relay, and retaining bracket into a single, easy-to-install unit. It operates on a 24V DC input voltage and features a 2 PDT (pole-double-throw) contact configuration, providing flexibility in circuit design. The module's push-in connection simplifies wiring, while the integrated damping diode protects the circuit from voltage spikes. Suitable for a wide range of industrial automation, control, and power distribution systems, the RIF-2-RPT-LDP-24DC/2X21 ensures dependable performance in demanding environments.
Phoenix Contact RIF2RPTLDP24DC2X21 24V DC Power Relay Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 110.0 g
- Custom tariff number: 85364110
- Country of origin: China
- Input voltage: 24 V DC
- Input voltage range: see diagram
- Typical input current at UN: 42 mA
- Typical response time: 13 ms
- Typical release time: 14 ms
- Coil voltage: 24 V DC
- Protective circuit: Damping diode
- Operating voltage display: Yellow LED
- Power dissipation for nominal condition: 1.01 W
- Contact type: 2 PDT
- Contact material: AgNi
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 5 V
- Min. switching current: 5 mA
- Maximum inrush current: 30 A
- Limiting continuous current: 10 A
- Interrupting rating (ohmic load) max.: 240 W
- Switching capacity in acc. with DIN VDE 0660/IEC 60947: 2 A (at 24 V, DC13)
- Connection method: Push-in connection
- Stripping length: 8 mm
- Conductor cross section solid: 0.14 mm² ... 1.5 mm²
- Conductor cross section flexible: 0.14 mm² ... 1.5 mm²
- Conductor cross section AWG: 26 ... 16
- Test voltage relay winding/relay contact: 2.5 kVrms
- Test voltage relay contact/relay contact: 2.5 kVrms
- Operating mode: 100% operating factor
- Degree of protection: IP20
- Mechanical service life: Approx. 2 x 10^7 cycles
- Standards/regulations: DIN EN 50178, IEC 62103
- Rated insulation voltage: 250 V AC
- Degree of pollution: 2
- Overvoltage category: III
- Mounting position: any
