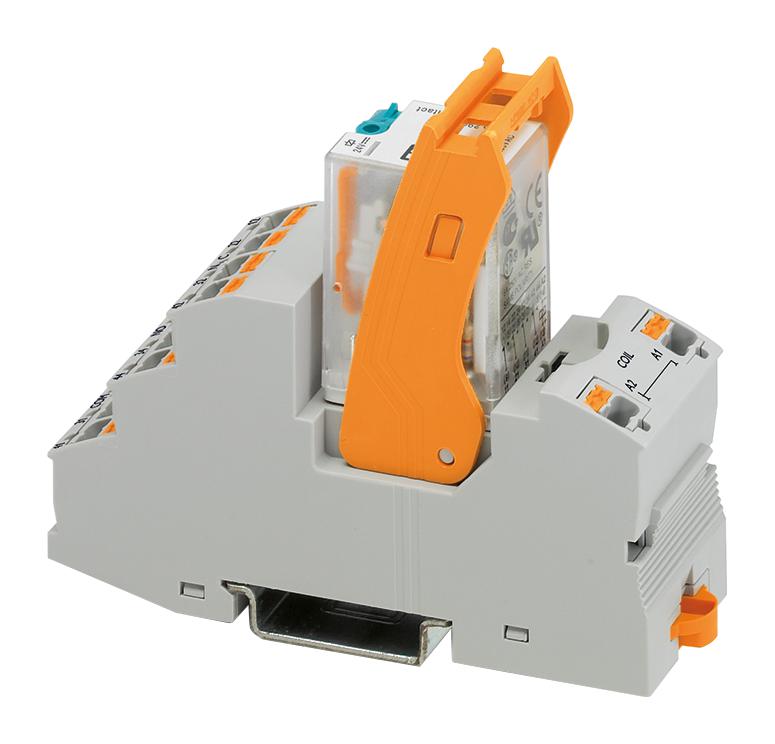

Phoenix Contact RIF2RPTLDP24DC4X21 industrial relay
This pre-assembled relay module features push-in connection, four PDT contacts, and operates on 24 V DC. It includes a relay base, power contact relay, and retaining bracket suitable for industrial automation. With a compact size of 31mm in width, 96mm in height, and 75mm in depth, it offers reliable switching capabilities and a response time of 13 ms. Designed for diverse industrial applications, it meets standards such as DIN EN 50178 and IEC 62103, with protection class IP20. Suitable for any mounting position, it provides durable operation with a mechanical lifespan of approximately 20 million cycles.
Phoenix Contact RIF2RPTLDP24DC4X21 industrial relay Specifications:
- Width: 31 mm
- Height: 96 mm
- Depth: 75 mm
- Ambient temperature (operation): -40°C to 60°C
- Ambient temperature (storage/transport): -40°C to 85°C
- Nominal input voltage: 24 V DC
- Typical input current: 42 mA
- Response time: 13 ms
- Release time: 14 ms
- Contact type: 4 PDTs, Single contact
- Contact material: AgNi
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 5 V at 24 mA
- Minimum switching current: 5 mA at 24 V
- Maximum inrush current: 16 A (20 ms, N/O contact)
- Limiting continuous current: 6 A
- Interrupting rating: 144 W at 24 V DC, 1500 VA at 250 V AC
- Connection method: Push-in, Stripping length: 8mm, Conductor cross section: 0.14 mm² to 1.5 mm²
- Test voltage relay winding/relay contact: 2.5 KV, relay contact/relay contact: 2 KV
- Degree of protection: IP20
- Mechanical service life: approx. 20 million cycles
- Standards: DIN EN 50178, IEC 62103, UL Listed
- Mounting: Any position
Buy the Phoenix Contact RIF-2-RPT-LDP-24DC/4X21 – Reliable Industrial Relay for Automation
Buy the Phoenix Contact relay module online today and experience dependable operation for your automation systems. Featuring 4 PDT contacts, 24 V DC input, and push-in connection, this relay is ideal for industrial applications requiring robust switching capabilities. Its compact size, IP20 protection, and long mechanical life ensure durability and ease of installation. Convenient to connect with flexible conductor ranges and standards compliance, this module guarantees efficient and reliable control for automation engineers and system integrators seeking top-quality relay solutions.
Order your Phoenix Contact RIF-2-RPT-LDP-24DC/4X21 relay today and ensure reliable switching in your automation projects with high durability and precision.
Frequently Asked Questions
Where can I buy Phoenix Contact RIF2RPTLDP24DC4X21?
You can click on the BUY or RFQ button to purchase RIF2RPTLDP24DC4X21 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part RIF2RPTLDP24DC4X21?
You can download the RIF2RPTLDP24DC4X21 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of RIF2RPTLDP24DC4X21?
Phoenix Contact
