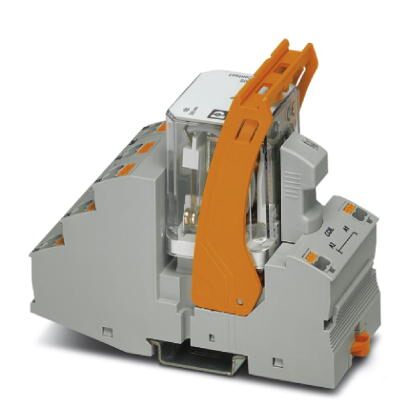

Phoenix Contact RIF4RPTLDP24DC3X21 4-Channel Relay Module
The PHOENIX CONTACT RIF-4-RPT-LDP-24DC/3X21 relay module provides a compact and reliable solution for switching multiple circuits in industrial automation and control systems. It combines a relay base, power contact relay, and retaining bracket into a single unit, simplifying installation and maintenance. The module's 24V DC input voltage and 3 PDT contacts make it suitable for a wide range of applications, including motor control, lighting control, and process automation. The push-in connection simplifies wiring, while the yellow LED indicates relay status. It is designed for DIN rail mounting and offers robust performance in demanding environments.
Phoenix Contact RIF4RPTLDP24DC3X21 4-Channel Relay Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 212.0 g
- Custom tariff number: 85364110
- Country of origin: Germany
- Width: 43 mm
- Height: 111 mm
- Depth: 90 mm
- Ambient temperature (operation): -40 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Nominal input voltage UN: 24 V DC
- Input voltage range in reference to UN: see diagram
- Typical input current at UN: 56 mA
- Typical response time: 20 ms
- Typical release time: 20 ms
- Coil voltage: 24 V DC
- Protective circuit: Damping diode
- Power dissipation for nominal condition: 1.34 W
- Contact type: 3 PDTs
- Contact material: AgNi
- Maximum switching voltage: 440 V AC
- Minimum switching voltage: 10 V
- Min. switching current: 10 mA
- Maximum inrush current: 50 A
- Limiting continuous current: 10 A
- Interrupting rating (ohmic load) max.: 240 W
- Switching capacity in acc. with DIN VDE 0660/IEC 60947: 2 A (at 24 V, DC13)
- 3-phase motor load: 1500 W
- Connection name: Coil side
- Connection method (input): Push-in connection
- Stripping length (input): 8 mm
- Conductor cross section solid (input): 0.14 mm² ... 1.5 mm²
- Conductor cross section flexible (input): 0.14 mm² ... 1.5 mm²
- Conductor cross section AWG (input): 26 ... 16
- Connection name (output): Contact side
- Connection method (output): Push-in connection
- Stripping length (output): 10 mm
- Conductor cross section solid (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 26 ... 14
- Test voltage relay winding/relay contact: 2.5 kVrms
- Test voltage relay contact/relay contact: 2.5 kVrms
- Operating mode: 100% operating factor
- Degree of protection: IP20
- Mechanical service life: Approx. 10,7cycles
- Standards/regulations: DIN EN 50178, IEC 62103
- Rated insulation voltage: 250 V AC
- Degree of pollution: 2
- Overvoltage category: III
