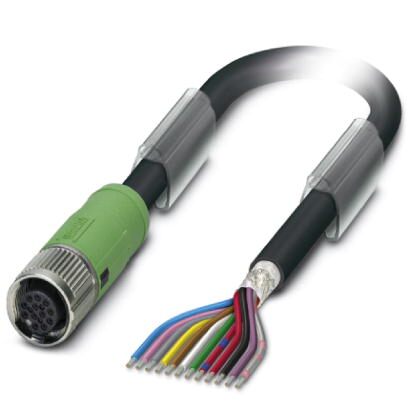

Phoenix Contact SAC12P5035TFSSHSCO 12-position Sensor Cable
The PHOENIX CONTACT SAC-12P- 5 0-35T/FS SH SCO is a 12-position sensor/actuator cable ideal for industrial automation applications. It combines a robust design with convenient features like the SPEEDCON fast locking system for quick and secure connections. The shielded cable ensures reliable signal transmission even in environments with electromagnetic interference. Constructed with PUR/PVC material and a black RAL 9005 finish, this cable is suitable for demanding environments requiring flexibility and durability. It is commonly used in applications involving sensors, actuators, and other field devices in manufacturing, robotics, and automated systems.
Phoenix Contact SAC12P5035TFSSHSCO 12-position Sensor Cable Specifications:
- Packing unit: 1 pc
- GTIN: 4046356322416
- Weight per Piece (excluding packing): 460.000 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Length of cable: 5 m
- Stripping length of the free conductor end: 35 mm
- Ambient temperature (operation): -25 °C ... 85 °C
- Degree of protection: IP65
- Rated current at 40°C: 1.5 A
- Rated voltage: 30 V AC / 30 V DC
- Number of positions: 12
- Insulation resistance: ≥ 10 MΩ*km (at 20 °C)
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Flammability rating according to UL 94: V0
- Contact material: CuZn
- Contact surface material: Ni/Au
- Contact carrier material: PA 6.6
- Material of grip body: TPU
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: Black PUR/PVC twisted pair
- Cable type (abbreviation): 35T
- Cable abbreviation: LSPYwC11Y
- UL AWM style: 20233 / 1061 (80°C/300 V)
- AWG signal line: 26
- Conductor structure signal line: 18x 0.10 mm
- Core diameter including insulation: 1 mm ±0.05 mm
- Wire colors: White-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue
- Twisted pairs: 2 cores to the pair
- Overall twist: Six pairs around the filler to the core
- Shielding: Tinned copper braided shield
- Optical shield covering: 85 %
- External sheath, color: black RAL 9005
- External cable diameter D: 8.5 mm ±0.2 mm
- Minimum bending radius, fixed installation: 5 x D
- Minimum bending radius, flexible installation: 10 x D
- Number of bending cycles: 2000000
- Bending radius: 85 mm
- Traversing path: 10 m
- Traversing rate: 3 m/s
- Acceleration: 10 m/s²
- Cable weight: 87 kg/km
- Outer sheath, material: PUR
- Material, inner sheath: PVC
- Material conductor insulation: PVC
- Conductor material: Tin-plated Cu litz wires
- Conductor resistance: ≤ 142 Ω/km (at 20 °C)
- Nominal voltage, cable: 42 V AC
- Test voltage, cable: 1500 V AC
- Special properties: Flexible cable conduit capable
- Flame resistance: According to DIN EN 60332-1-2 / VW-1
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Other resistance: hydrolysis and microbe resistant according to EN 50396
- Ambient temperature (operation) cable: -30 °C ... 80 °C
- China RoHS: Environmentally Friendly Use Period = 50
