Phoenix Contact SAC3P30PURM8FR Sensor/Actuator Cable

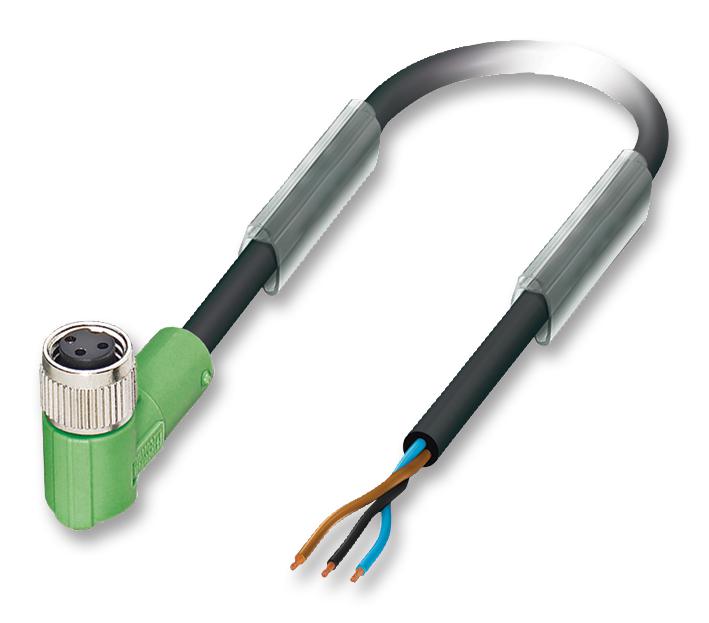

This sensor/actuator cable features a 3-position, halogen-free PUR black outer sheath with an angled M8 connector, measuring 3 meters in length. It is designed for reliable signal transmission in industrial automation, with a rated current of 4A and a maximum voltage of 60V. The flexible, microbe and hydrolysis-resistant cable withstands harsh environments, offering IP65/IP67/IP68 protection, a bending radius of 44mm, and over 4 million bending cycles. Suitable for demanding applications, it ensures safe, high-quality connections in industrial settings.
Phoenix Contact SAC3P30PURM8FR Sensor/Actuator Cable Specifications:
- Length of cable: 3m
- Rated current: 4A
- Rated voltage: 60V
- Number of positions: 3
- Outer sheath: PUR halogen-free black (RAL 7021)
- Overall diameter: 4.4mm
- Bending radius: 44mm
- Bending cycles: > 4,000,000
- Ambient temperature (fixed): -40°C to 80°C
- Ambient temperature (flexible): -25°C to 80°C
- Insulation resistance: > 100 MΩ at 20°C
- Conductor resistance: < 78 Ω/km at 20°C
- Contact resistance: < 5 mΩ
- Certification: UL Listed, cUL Listed
- Protection rating: IP65/IP67/IP68
- Cable weight: approximately 24 kg/km
Buy the Phoenix Contact Series SAC: 3m Halogen-Free Sensor Actuator Cable with M8 Connector
Purchase the Phoenix Contact SAC3P30PURM8FR sensor and actuator cable online today for high-performance, flame-resistant, halogen-free connection solutions. This 3-meter cable with an angled M8 connector offers IP67/IP68 protection, ensuring safety and durability in industrial settings. Its flexible, oil-resistant, and UV-resistant design withstands harsh environments while maintaining excellent conductivity and signal quality. Ideal for automation systems requiring reliable, long-lasting connections, this cable meets strict safety standards and is perfect for automated machinery, robotics, and control systems in demanding industrial applications.
Get Phoenix Contact SAC3P30PURM8FR today—built for reliable, durable connections in industrial automation environments.
Frequently Asked Questions
Where can I buy Phoenix Contact SAC3P30PURM8FR?
You can click on the BUY or RFQ button to purchase SAC3P30PURM8FR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC3P30PURM8FR?
You can download the SAC3P30PURM8FR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC3P30PURM8FR?
Phoenix Contact
