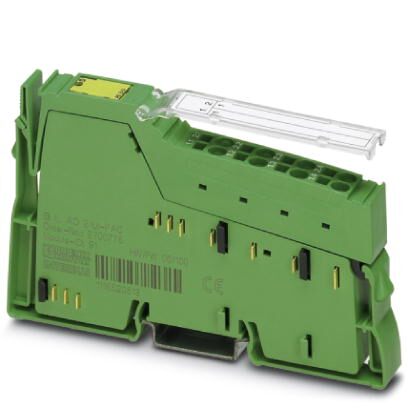

Phoenix Contact 2700775 Inline Analog Output Terminal
The PHOENIX CONTACT Inline terminal IB IL AO 2/UI-PAC (part number 2700775) is a versatile device designed for industrial automation applications. It provides two analog output channels, enabling the connection of actuators using 2-wire technology. The terminal supports various voltage and current output ranges (0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA), making it suitable for a wide range of process control and monitoring tasks. It includes diagnostic and status indicators, facilitating troubleshooting and ensuring system reliability. The terminal is DIN rail mountable and offers electrical isolation for enhanced safety and noise immunity. It is compliant with various standards and regulations, including UL, cUL, EAC, and cULus, ensuring its suitability for diverse industrial environments.
Phoenix Contact 2700775 Inline Analog Output Terminal Specifications:
- Packing unit: 1 pc
- GTIN: 4046356639965
- Weight per Piece (excluding packing): 100.000 g
- Custom tariff number: 85389091
- Country of origin: Germany
- Width: 12.2 mm
- Height: 119.8 mm
- Depth: 71.5 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Permissible humidity (operation): 10 % ... 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport): 10 % ... 95 % (according to DIN EN 61131-2)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Degree of protection: IP20
- Mounting type: DIN rail
- Net weight: 66 g
- Diagnostics messages: Failure of the internal I/O supply, I/O error message, Short circuit/overload of the outputs, Configuration invalid
- Connection method: Inline data jumper
- Transmission speed: 500 kbps
- Transmission physics: Copper
- Supply voltage (Communications power UL): 7.5 V DC (via voltage jumper)
- Current consumption (Communications power UL): typ. 55 mA
- Max Current consumption (Communications power UL): 65 mA
- Supply voltage (Supply of analog modules UANA): 24 V DC (via voltage jumper)
- Supply voltage range: 19.2 V DC ... 30 V DC
- Current consumption (Supply of analog modules UANA): typ. 24 mA (No-load)
- Max Current consumption (Supply of analog modules UANA): 30 mA (No-load)
- Current consumption (Nominal voltage load): typ. 38 mA
- Max Current consumption (Nominal voltage load): max. 45 mA
- Nominal current load: typ. 65 mA
- Max Nominal current load: max. 75 mA
- Power consumption: typ. 1.32 W
- Number of outputs: 2
- Connection technology: 2-wire
- D/A conversion time: typ. 10 µs
- D/A converter resolution: 12 bit
- Type of protection: Short-circuit and overload protection
- Data formats: IB IL, S7-compatible
- Representation of output values: 12 bits (11 bits + sign bit)
- Process data update: bus-synchronous
- Current output signal: 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA
- Load/output load current output: ≤ 450 Ω
- Voltage output signal: 0 V ... 10 V, -10 V ... 10 V
- Load/output load voltage output: > 1 kΩ
- Precision: typ. 0.1 % (of output range final value)
- Permissible cable length: max. 250 m
- Test section: 7.5 V supply (bus logics)/24 V analog supply (analog I/O) 500 V AC 50 Hz 1 min.
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
