Phoenix Contact SAC3P50PURM8FS Sensor/Actuator Cable

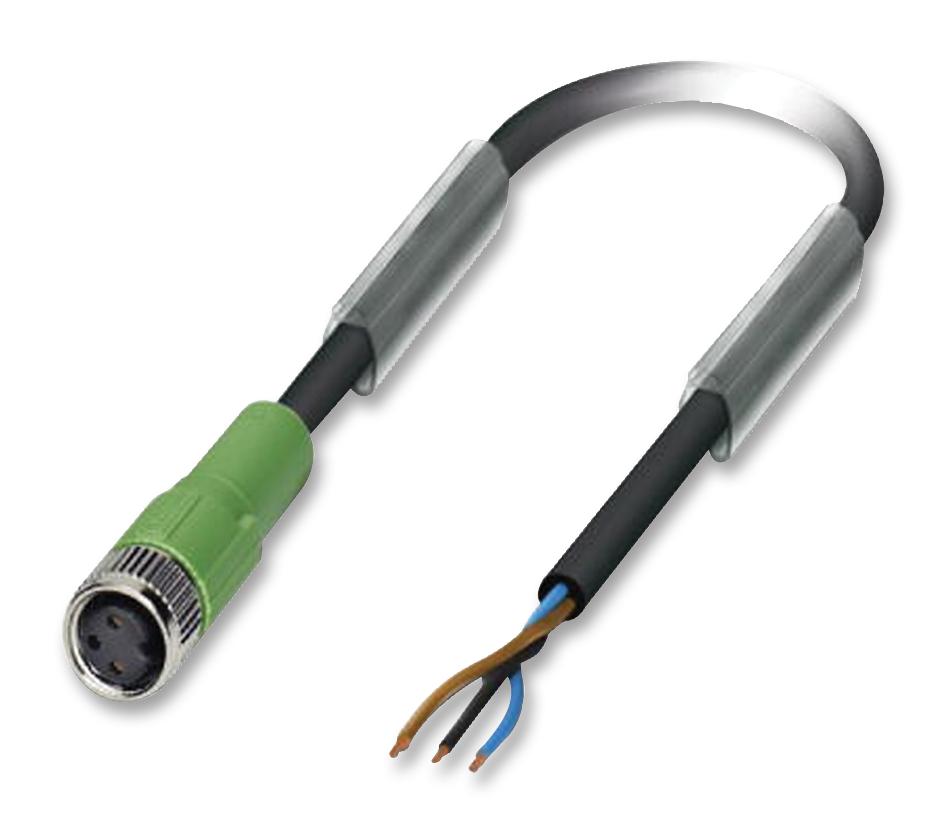

The SAC-3P-5.0-PUR/M 8FS is a 5-meter, halogen-free, PUR sensor/actuator cable with a 3-position M8 straight socket and a stripped or free end connection. It features copper-tin contacts, a glass-filled TPU contact carrier, a self-extinguishing TPU grip body, and nickel-plated zinc die-cast knurls. The cable is designed for safe, reliable connections, with 100% electrical testing of plug-in components. It is resistant to oil, flame, saltwater, hydrolysis, and microbial attack, and has an external sheath in black-grey (RAL 7021). The outer sheath is made of PUR, with PP insulation for the conductor. It supports a rated current of 4A at 40°C and a rated voltage of 60V, with insulation resistance exceeding 100 MΩ. This cable is suitable for sensing and instrumentation applications.
Phoenix Contact SAC3P50PURM8FS Sensor/Actuator Cable Specifications:
- Cable length: 5 m
- Number of positions: 3
- Rated current: 4A at 40°C
- Rated voltage: 60V
- Insulation resistance: > 100 MΩ
- Outer sheath material: PUR, black-gray RAL 7021
- Contact material: CuSn
- Contact surface: Ni/Au
- Contact carrier: TPU GF
- Material of grip body: TPU, self-extinguishing
- Knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PUR halogen-free, black
- Conductor cross section: 3x 0.25 mm²
- Conductor structure: 32x 0.10 mm
- Core diameter including insulation: 1.17 mm ± 0.02 mm
- Insulation thickness: > 0.38 mm
- External cable diameter: 4.4 mm ± 0.15 mm
- Minimum bending radius (fixed): 5xD, movable: 10xD
- Bending cycles: 4,000,000
- Operating temperature: -40°C to 80°C (fixed), -25°C to 80°C (flexible)
- Flammability rating: UL 94 HB
- resistance to oil, hydrolysis, microbe, acids, salts, and UV
- Test voltage: 3000 V
- Approval for UL, cUL, EAC, cULus
Buy the Phoenix Contact Series SAC-3P Sensor/Actuator Cable: SAC3P50PURM8FS
Order the Phoenix Contact SAC3P50PURM8FS sensor/actuator cable online today to ensure reliable, safe connections in your automation or instrumentation projects. Crafted with halogen-free PUR insulation, this 5-meter cable features a robust M8 straight connector, copper-tin contacts, self-extinguishing TPU grip body, and zinc die-cast knurls. It supports a rated current of 4A and voltage of 60V, with excellent chemical, oil, and flame resistance. Ideal for industrial environments demanding durable and safe sensor connections, available now for immediate delivery.
Buy Phoenix Contact SAC3P50PURM8FS now and experience unmatched reliability and performance for sensing and automation applications.
