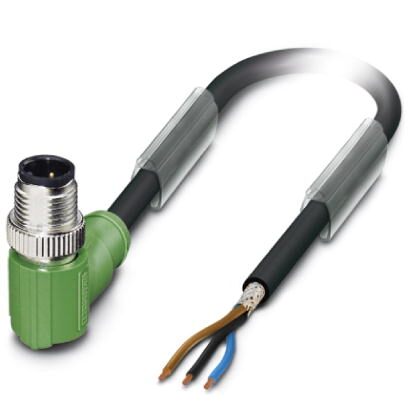

Phoenix Contact SAC3PM12MR50PURSH 3-Position M12 Sensor Cable
This PHOENIX CONTACT cable is designed for reliable data transmission in industrial environments. The shielded M12 connector and robust PUR cable provide protection against electromagnetic interference and harsh conditions. It's ideal for connecting sensors and actuators in automated systems, offering a secure and dependable connection with its electrically tested plug-in components and halogen-free cable construction. The angled connector allows for flexible installation in tight spaces.
Phoenix Contact SAC3PM12MR50PURSH 3-Position M12 Sensor Cable Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 237.34 g
- Custom tariff number: 85444290
- Country of origin: Poland
- Length of cable: 5 m
- Stripping length of the free conductor end: 50 mm
- Ambient temperature (operation): -25 °C ... 90 °C
- Degree of protection: IP65
- Rated current at 40°C: 4 A
- Rated voltage: 250 V
- Number of positions: 3
- Insulation resistance: ≥ 100 GΩ*km (at 20 °C)
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Cable type: PUR halogen-free black
- Cable type (abbreviation): PUR
- Cable abbreviation: Li9Y-Vl-C-Vl-11Y
- UL AWM style: 20549
- Conductor cross section: 3x 0.34 mm² (Signal line)
- AWG signal line: 22
- Conductor structure signal line: 42x 0.10 mm
- Core diameter including insulation: 1.27 mm ±0.02 mm (Signal line)
- Thickness, insulation: ≥ 0.21 mm (Core insulation)
- Wire colors: brown, blue, black
- Overall twist: 3 wires, twisted
- Shielding: Braided copper wires
- Optical shield covering: 85 %
- External sheath, color: black-gray RAL 7021
- Outer sheath thickness: approx. 1.1 mm
- External cable diameter D: 5.9 mm ±0.15 mm
- Smallest bending radius, fixed installation: 29.5 mm
- Smallest bending radius, movable installation: 59 mm
- Minimum bending radius, fixed installation: 5 x D
- Minimum bending radius, flexible installation: 10 x D
- Number of bending cycles: 4000000
- Bending radius: 59 mm
- Traversing path: 10 m
- Traversing rate: 3 m/s
- Acceleration: 10 m/s²
- Cable weight: 44 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: PP
- Conductor material: Bare Cu litz wires
- Conductor resistance: max. 58 Ω/km (at 20 °C)
- Nominal voltage, cable: ≤ 300 V
- Test voltage, cable: ≥ 3000 V
- Flame resistance: in accordance with DIN UL-Style 20549
- Halogen-free: in accordance with DIN VDE 0472 part 815
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Other resistance: Highly resistant to acids, alkaline solutions and solvents
- Ambient temperature (operation) cable: -40 °C ... 80 °C
- eCl@ss 4.0: 27060306
- eCl@ss 4.1: 27060306
- eCl@ss 5.0: 27061801
- eCl@ss 5.1: 27061801
- eCl@ss 6.0: 27061801
- eCl@ss 7.0: 27061801
- eCl@ss 8.0: 27279218
- ETIM 2.0: EC000830
- ETIM 3.0: EC001855
- ETIM 4.0: EC001855
- ETIM 5.0: EC001855
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
