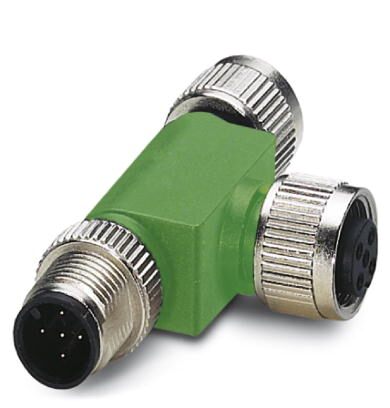

Phoenix Contact SAC3PM12T2XM12BPE 3-Position M12 T Distributor
The PHOENIX CONTACT SAC-3P-M12T/2XM12 B PE T-distributor provides a convenient and reliable solution for distributing power and signals in industrial applications. This 3-position M12 connector features A-coding for compatibility with standard M12 systems. The design includes straight plug and socket connectors, with pins 2+4 bridged, enabling efficient signal routing. Constructed with high-quality materials like CuZn contacts, TPU insulation, and zinc die-cast housing, it offers excellent durability and resistance to environmental factors. Ideal for use in factory automation, robotics, and other industrial settings requiring robust and reliable connectivity.
Phoenix Contact SAC3PM12T2XM12BPE 3-Position M12 T Distributor Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 26.2 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -25 °C ... 90 °C
- Degree of protection: IP65, IP67
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Number of positions: 3
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Status display: No
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- eCl@ss 4.0: 27060306
- eCl@ss 4.1: 27060306
- eCl@ss 5.0: 27061801
- eCl@ss 5.1: 27061801
- eCl@ss 6.0: 27061801
- eCl@ss 7.0: 27061801
- eCl@ss 8.0: 27440104
- eCl@ss 9.0: 27440102
- ETIM 2.0: EC000830
- ETIM 3.0: EC001855
- ETIM 4.0: EC001855
- ETIM 5.0: EC002062
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
