Phoenix Contact SAC3PM8MS30PURM8FS Sensor/Actuator Cable

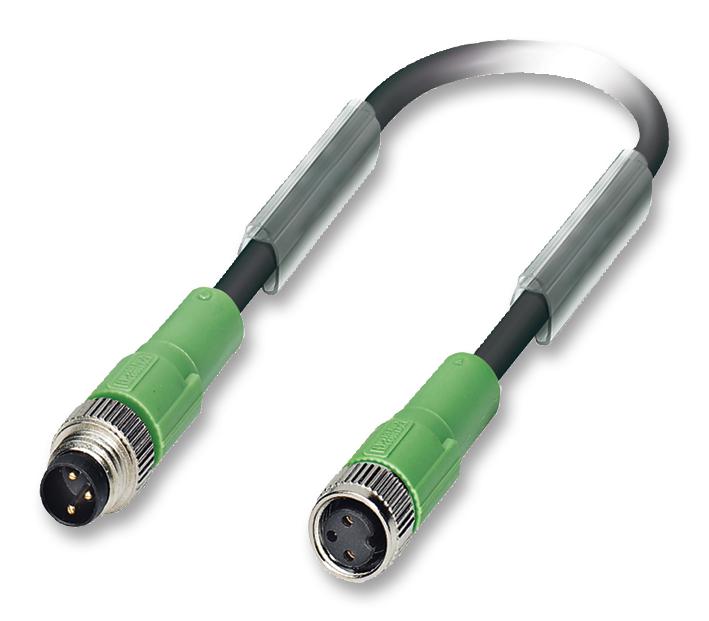

The sensor/actuator cable SAC-3P-M 8MS/3,0-PUR/M 8FS is a durable, halogen-free, flexible wiring solution designed for industrial automation and sensor connections. Featuring a 3-meter length, it has robust PUR insulation, twisted conductors, and M8 connectors that ensure reliable signal transmission and easy installation. Rated for operation from -25°C to 90°C with IP65/IP67/IP68 protection, it resists oil, chemicals, UV, and Microbe exposure, making it ideal for harsh environments. Compliant with IEC 61076-2-104 standards, this cable provides excellent electrical performance and long-lasting durability for industrial settings.
Phoenix Contact SAC3PM8MS30PURM8FS Sensor/Actuator Cable Specifications:
- Cable Length: 3 meters
- Insulation Resistance: > 100 MQ
- Conductor Material: CuSn, bare litz wires
- Contact Material: CuSn with Ni/Au surface
- Outer Sheath Material: PUR halogen-free, black-gray RAL 7021
- Outer Diameter: 4.4 mm ± 0.15 mm
- Bending Radius: Fixed installation 22 mm, Movable installation 44 mm
- Temperature Range (operation): -25°C to 90°C
- Voltage Rating: < 300V
- Test Voltage: 3000V
- Protection Level: IP65/IP67/IP68
- Resistance to oil, chemicals, UV, hydrolysis, microbes, salt water
- Number of Bending Cycles: over 4 million
- Rated Current: Not specified
- Rated Voltage: Not specified
Buy the Buy Phoenix Contact Sensor/Actuator Cable SAC-3P-M 8MS/3,0-PUR/M 8FS Online
Purchase the Phoenix Contact sensor and actuator cable SAC-3P-M 8MS/3,0-PUR/M 8FS online for dependable performance. Its robust PUR halogen-free insulation offers excellent resistance to oil, chemicals, UV, and microbes. Ideal for industrial automation, it features twisted conductors, IP65/IP67/IP68 protection, and a length of 3 meters. Designed for harsh environments, it withstands temperatures from -25°C to 90°C, with over 4 million bending cycles, ensuring long-lasting durability and reliable signal transmission for sensors and automation systems in demanding industrial applications.
Get Phoenix Contact SAC-3P-M 8MS/3,0-PUR/M 8FS today—built for reliability in harsh industrial environments with superior chemical and UV resistance.
