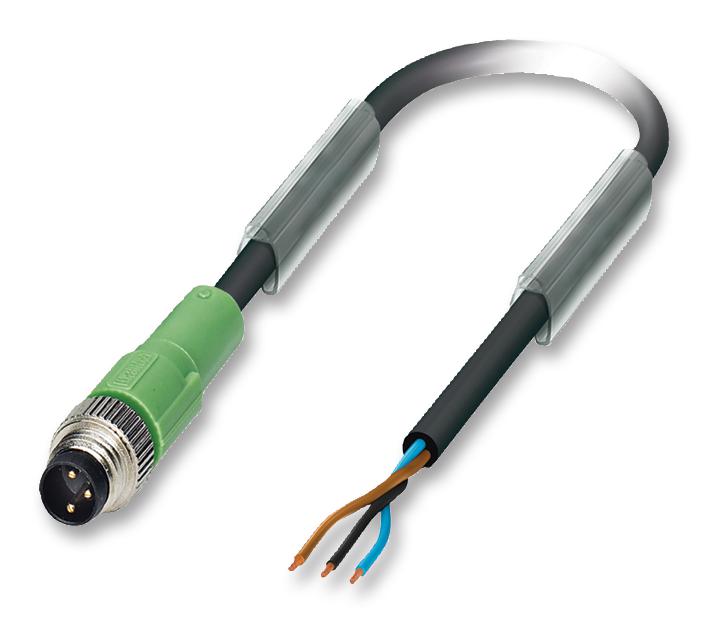

Phoenix Contact SAC3PM8MS50PUR Sensor/Actuator Cable
This sensor/actuator cable features a 3-position, halogen-free PUR outer sheath, black-gray in color, with a straight M8 plug, suitable for industrial automation. It is 5 meters long, rated for 4A at 60V, and complies with IEC 61076-2-104 standards. The cable has a robust construction with twisted 24 AWG signal conductors, flexible and resistant to oil, saltwater, and UV. It offers high flexibility, minimal bending radius of 22mm, and is ideal for reliable, safe connections in harsh environments.
Phoenix Contact SAC3PM8MS50PUR Sensor/Actuator Cable Specifications:
- Cable length: 5m
- Number of positions: 3
- Rated current: 4A at 40°C
- Rated voltage: 60V
- Cable type: PUR halogen-free black
- Outer sheath thickness: approx. 0.9mm
- Outer sheath color: black-gray RAL 7021
- Bending radius (fixed): 5xD, (movable): 44mm
- Conductor cross section: 3x 0.25 mm²
- Conductor material: Bare Cu litz wires
- Insulation resistance: > 100 MQ
- Temperature resistance: -40°C to 80°C
- Flammability rating: UL 94 HB
- complies with: IEC 61076-2-104
- Protective properties: Oil, saltwater, hydrolysis, microbe resistant, UV resistant
Buy the Buy Phoenix Contact Sensor/Actuator Cable Part Number SAC3PM8MS50PUR Online
Discover the high-quality Phoenix Contact Sensor/Actuator Cable with 3-pin halogen-free PUR sheath, 5 meters length, and a straight M8 plug. Suitable for demanding industrial automation tasks, it offers exceptional flexibility, resistance to oil, saltwater, UV, and harsh conditions. Its robust design ensures safe, reliable connectivity in harsh environments. Order this versatile, durable sensor/actuator cable online today and equip your automation systems with trusted, top-grade components for optimal performance and safety in critical applications.
Order your Phoenix Contact Series SAC3PM8MS50PUR sensor/actuator cable today and ensure reliable, high-quality connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact SAC3PM8MS50PUR?
You can click on the BUY or RFQ button to purchase SAC3PM8MS50PUR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC3PM8MS50PUR?
You can download the SAC3PM8MS50PUR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC3PM8MS50PUR?
Phoenix Contact
