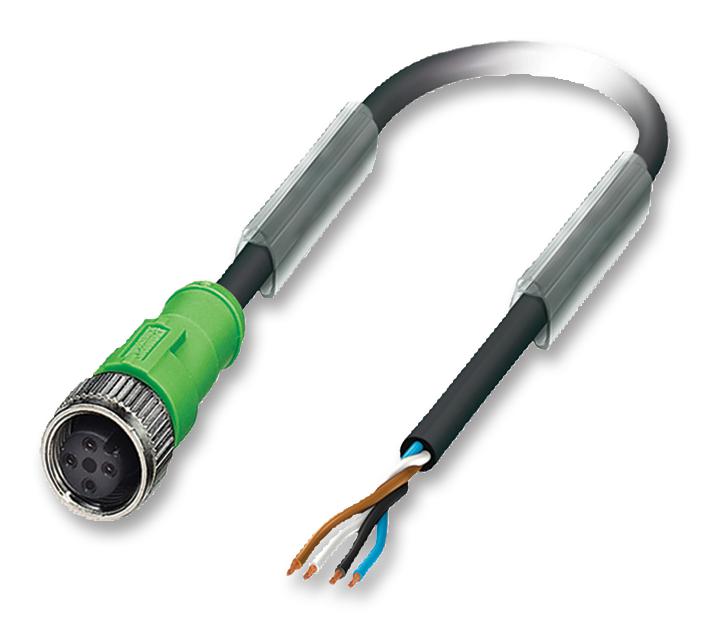

Phoenix Contact SAC4P15PURM12FS Sensor/Actuator Cable
The sensor/actuator cable SAC-4P-1,5-PUR/M12FS by Phoenix Contact is a robust, halogen-free, black-gray PUR cable designed for reliable signal transmission in industrial environments. It features a 4-position, A-coded M12 connector with a straight socket, rated for temperatures between -25°C and 90°C, and offers IP65/IP67/IP68 protection. The cable has a length of 1.5 meters, with a conductor cross-section of 4x 0.34 mm², twisted wires, and a diameter of approximately 4.7 mm, ensuring high flexibility, resistance to oils, acids, and UV, making it ideal for automation and sensor applications.
Phoenix Contact SAC4P15PURM12FS Sensor/Actuator Cable Specifications:
- Cable length: 1.5 m
- Outer sheath material: PUR halogen-free black
- Cable diameter: approx. 4.7 mm
- Conductor cross-section: 4x 0.34 mm²
- Wire colors: brown, white, blue, black
- Rated voltage: <300V
- Ambient temperature (fixed): -40°C to 80°C
- Ambient temperature (flexible): -25°C to 80°C
- Ingress protection: IP65/IP67/IP68
- Conductor resistance: < 58 Ω/km
- Insulation resistance: > 1 GΩ/km
- Test voltage: > 3000 V
- UL/CSA approval: UL Listed, cUL Listed
- Rated current: 4 A at 40°C
- Contact material: CuSn
- Contact surface: Ni/Au
- Sealing material: NBR
- Standards: IEC 61076-2-101
- Bending radius: fixed 5xD, flexible 10xD
- Number of bending cycles: 4,000,000
- Temperature rating: -25°C to 90°C (plug/socket), -40°C to 80°C (cable)
Buy the Buy Phoenix Contact Sensor/Actuator Cable SAC-4P-1,5-PUR/M12FS Online
Purchase the high-quality Phoenix Contact sensor/actuator cable SAC-4P-1,5-PUR/M12FS directly online. Its halogen-free PUR construction, IP68 rating, and excellent resistance to oils, acids, and UV make it ideal for reliable signal transmission in industrial environments. The 4-pin, A-coded M12 connector ensures a secure connection, with a flexible, durable design that withstands extreme temperatures from -40°C to 80°C. Perfect for automation, sensors, and actuator connections, this cable guarantees safe operation and long service life.
Buy Phoenix Contact SAC-4P-1,5-PUR/M12FS now and experience unmatched reliability and performance in industrial automation applications.
Frequently Asked Questions
Where can I buy Phoenix Contact SAC4P15PURM12FS?
You can click on the BUY or RFQ button to purchase SAC4P15PURM12FS from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC4P15PURM12FS?
You can download the SAC4P15PURM12FS datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC4P15PURM12FS?
Phoenix Contact
