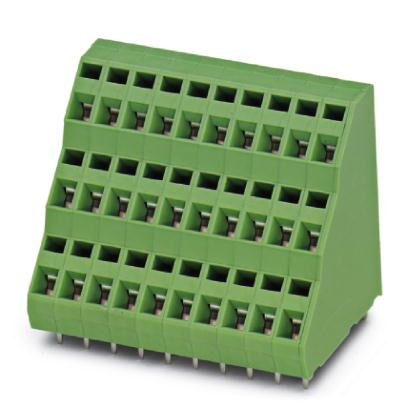

Phoenix Contact ZFK3DS15508 PCB Terminal Block
This green PCB terminal block provides reliable electrical connections with a rated current of 12 A and rated voltage of 400 V (III/2). Designed for secure crimping and wave soldering mounting, it features a pitch of 5.08 mm and a single position per module. The terminal adopts a spring-cage connection method for effortless conductor attachment, supporting wire cross sections from 0.2 mm² to 2.5 mm². Its compact design allows high contact density, with conductors connecting at a 45° angle. Suitable for various configurations, it is ideal for PCB projects requiring robust, modular connections and flexible setup options.
Phoenix Contact ZFK3DS15508 PCB Terminal Block Specifications:
- Rated current: 12 A
- Rated voltage: 400 V (III/2)
- Nominal cross section: 1.5 mm²
- Pitch: 5.08 mm
- Connection method: Spring-cage
- Mounting: Wave soldering
- Conductor cross section (solid): 0.2 mm² - 2.5 mm²
- Conductor cross section (flexible): 0.2 mm² - 1.5 mm²
- Pin length: 3.4 mm
- Connection in accordance with standards: EN-VDE
- Flammability rating: UL 94 V-0
- Material: PA (Polyamide)
- Color: Green
Buy the Phoenix Contact Series ZFK3DS PCB Terminal Block: ZFK3DS15508
Purchase the Phoenix Contact PCB terminal block ZFK3DS15508 online today to ensure secure, durable, and high-density PCB wiring. This terminal block features a 5.08 mm pitch, 12 A current rating, and 400 V voltage capacity, making it ideal for a variety of electronic and industrial projects. Its spring-cage connection system simplifies conductor attachment, supporting wire sizes from 0.2 to 2.5 mm². Designed for wave soldering, it offers reliable and long-lasting performance. Easy to install and versatile, this modular terminal block adapts to your specific wiring needs, ensuring seamless integration into your electronic assemblies.
Get Phoenix Contact ZFK3DS15508 today—built for reliable electrical connections and flexible modular wiring solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact ZFK3DS15508?
You can click on the BUY or RFQ button to purchase ZFK3DS15508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part ZFK3DS15508?
You can download the ZFK3DS15508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of ZFK3DS15508?
Phoenix Contact
