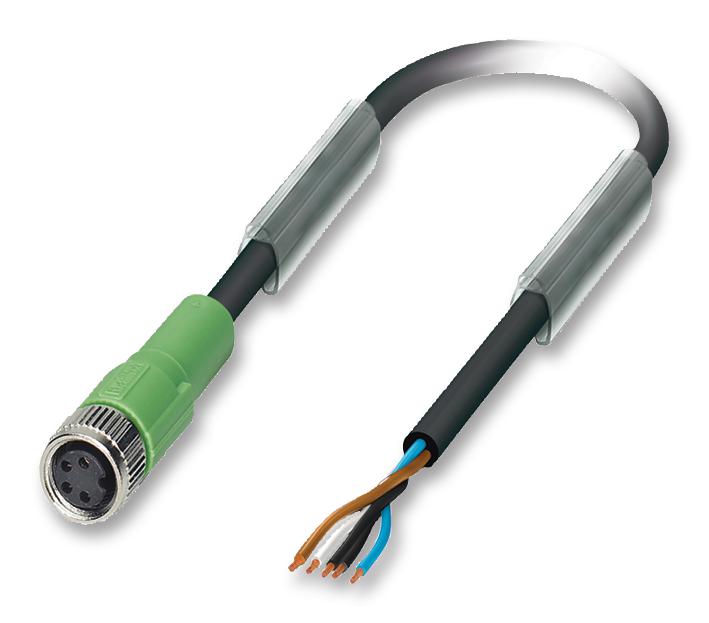

Phoenix Contact SAC4P15PURM8FS Sensor/Actuator Cable
The sensor/actuator cable SAC-4P-1.5-PUR/M 8FS is a robust, halogen-free PUR cable designed for industrial sensor and actuator connections. It features a 4-position M8 connector, 1.5-meter length, and is suitable for operation within -25°C to 90°C. The cable offers IP65/IP67/IP68 protection, rated current of 4A, and voltage of 30V. Constructed with copper contacts, Ni/Au surfaces, and a TPU GF carrier, it ensures high durability, resistance to oils, acids, and UV exposure. Ideal for factory automation and control systems, it is easy to install with a 50mm stripping length.
Phoenix Contact SAC4P15PURM8FS Sensor/Actuator Cable Specifications:
- Cable length: 1.5 m
- Number of positions: 4
- Rated current: 4A at 40°C
- Rated voltage: 30V
- Ambient temperature (operation): -25°C to 90°C
- Protection level: IP65/IP67/IP68
- Contact resistance: <5 mΩ
- Insulation resistance: > 100 MΩ
- Conductor cross section: 4x 0.25 mm²
- Conductor material: Bare Cu litz wires
- Outer sheath material: PUR halogen-free, black
- External cable diameter: 4.4 mm
- Bending radius (fixed): 22mm, (movable): 44mm
- Number of bending cycles: 4,000,000
- Material contacts: CuSn with Ni/Au surface
- Sealing material: NBR
- Connector standard: IEC 61076-2-104
Buy the Phoenix Contact SAC4P15PURM8FS – Reliable Sensor/Actuator Cable for Industrial Applications
Order the Phoenix Contact SAC4P15PURM8FS sensor and actuator cable online today to ensure reliable, high-quality connections in your automation system. Designed for industrial environments, this 1.5-meter, halogen-free PUR cable features IP67 protection, easy installation, and resistance to oil, acids, and UV exposure. With a robust construction, four twisted copper conductors, and a straight M8 socket, it guarantees excellent electrical performance and durability even under harsh conditions. Enhance your automation setup by purchasing this premium cable easily through our online store for fast, secure delivery.
Buy Phoenix Contact SAC4P15PURM8FS now and experience unmatched durability and performance in industrial sensor and actuator connections.
Frequently Asked Questions
Where can I buy Phoenix Contact SAC4P15PURM8FS?
You can click on the BUY or RFQ button to purchase SAC4P15PURM8FS from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC4P15PURM8FS?
You can download the SAC4P15PURM8FS datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC4P15PURM8FS?
Phoenix Contact
