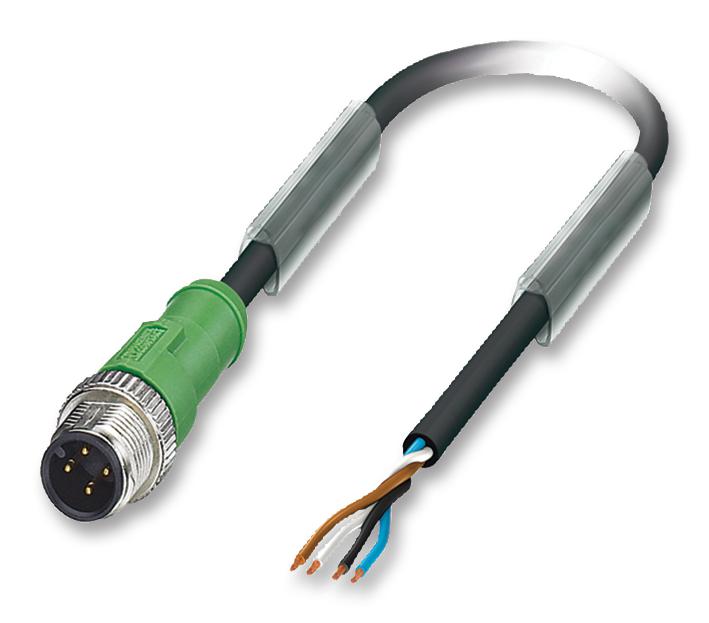

Phoenix Contact SAC4PM12MS50PUR Sensor/Actuator Cable
The Sensor/Actuator cable SAC-4P-M12MS/5,0-PUR is a robust, halogen-free, and flexible cable designed for industrial sensor and actuator connections. It features a 4-position A-coded M12 straight connector with a black-gray PVC sheath, ensuring IP65/IP67/IP68 protection suitable for harsh environments. The cable is 5 meters long with stranded copper conductors, resistance to oil, acids, and UV. It complies with IEC 61076-2-101 standards, rated for 4A at 250V, and withstands numerous bending cycles for reliable industrial applications.
Phoenix Contact SAC4PM12MS50PUR Sensor/Actuator Cable Specifications:
- Number of positions: 4
- Cable type: PUR halogen-free black
- Cable length: 5m
- Outer sheath material: PUR, black-gray RAL 7021
- Conductor cross section: 4x 0.34 mm²
- Rated current: 4A at 40°C
- Rated voltage: 250V
- Insulation resistance: > 100 MΩ
- Bending radius: fixed installation 5xD, flexible 10xD
- Minimum bending radius: 23.5mm for fixed, 47mm flexible
- Operating temperature: -40°C to 80°C
- Flammability rating: UL 94 HB
- Contact material: CuSn with Ni/Au surface
- Standards: IEC 61076-2-101
- Protection class: IP65/IP67/IP68
- Number of bending cycles: > 4 million
- Environmental resistance: oil, acids, UV, hydrolysis, microbe
- Test voltage: 3000V
Buy the Phoenix Contact Series SAC-4P-M12MS/ 5,0-PUR Sensor/Actuator Cable: SAC4PM12MS50PUR
Order the Phoenix Contact SAC-4P-M12MS/5,0-PUR sensor and actuator cable online today. Designed for durability and reliability, this 5-meter halogen-free PUR cable features a robust IP65/IP67/IP68 rating, making it ideal for industrial automation in demanding environments. Its flexible design, high resistance to oil, UV, and acids, combined with over 4 million bending cycles, ensures long-lasting performance. Simply add to your cart now and enhance your automation setup with this professional-grade connection solution.
Get Phoenix Contact SAC-4P-M12MS/5,0-PUR today—built for industrial sensor, actuator, and automation connections in harsh environments.
