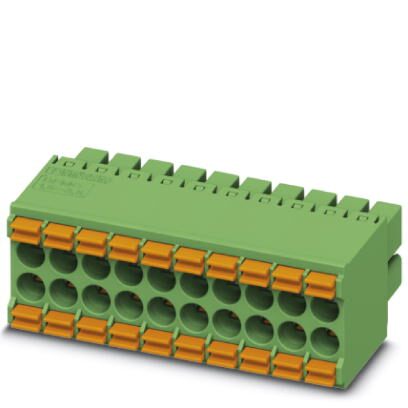

Phoenix Contact 1790182 PCB Connector
This is a green, 10-position electrical connector with 20 contacts, featuring a pitch of 3.5 mm. It is designed for a rated voltage of 160 V (III/2) and a nominal current of 8 A. The connection is made via spring-cage terminals, and the contacts have a tin surface for improved conductivity and corrosion resistance.
Phoenix Contact 1790182 PCB Connector Specifications:
- Number of positions: 10
- Contacts: 20
- Pitch: 3.5 mm
- Rated voltage: 160 V (III/2)
- Nominal current: 8 A
- Connection method: Spring-cage
- Contact surface: Tin
- Ambient temperature (assembly): -5°C to 100°C
- Ambient temperature (operation): -40°C to 100°C
- Housing color: Green
- Material data: Contact - Copper alloy, Tin-plated; Housing - Thermoplastic
- Electrical tests: Impulse withstand voltage 2.95 kV, Power-frequency voltage 1.39 kV
- Environmental compliance: RoHS and WEEE compliant
- Connection capacity for ferrules: 0.2-1.5 mm²
- Dimensions and size: Typical contact length 8-10 mm, connector width approx. 23.35 mm
Buy the Phoenix Contact Series DFMC PCB Connector: 1790182
Purchase the Phoenix Contact 1790182 PCB connector online today to ensure reliable, corrosion-resistant connections with easy spring-cage terminal installation and optimal contact stability for your electrical projects.
Get Phoenix Contact 1790182 today—built for reliable connections and long-lasting durability.
Frequently Asked Questions
Where can I buy Phoenix Contact 1790182?
You can click on the BUY or RFQ button to purchase 1790182 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1790182?
You can download the 1790182 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1790182?
Phoenix Contact
