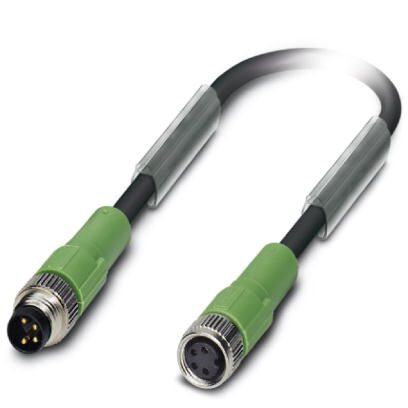

Phoenix Contact SAC4PM8MS03PURM8FS 4-Position Sensor Cable
The PHOENIX CONTACT SAC-4P-M 8MS/0 3-PUR/M 8FS is a 4-position sensor/actuator cable designed for reliable connection of sensors and actuators in industrial automation applications. The cable is constructed with a durable, halogen-free PUR outer sheath, providing excellent resistance to oils, chemicals, and abrasion. It features M8 connectors on both ends, ensuring a secure and compact connection. This cable is suitable for use in harsh environments and is commonly used in automated manufacturing, robotics, and process control systems. Its robust design and reliable performance make it a valuable component for ensuring efficient and safe operation of industrial equipment.
Phoenix Contact SAC4PM8MS03PURM8FS 4-Position Sensor Cable Specifications:
- Packing unit: 1 pc
- GTIN: 4017918158804
- Weight per Piece (excluding packing): 17.400 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Length of cable: 0.3 m
- Ambient temperature (operation): -25 °C ... 90 °C
- Degree of protection: IP65, IP67, IP68
- Rated current at 40°C: 4 A
- Rated voltage: 48 V AC, 60 V DC
- Number of positions: 4
- Insulation resistance: ≥ 100 GΩ*km (at 20 °C)
- Coding: A - standard
- Standards/regulations: M8 connector IEC 61076-2-104
- Status display: No
- Protective circuit/component: unwired
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.2 Nm
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PUR halogen-free black
- Cable type (abbreviation): PUR
- Cable abbreviation: Li9Y11Y-HF
- UL AWM style: 20549 / 10493 (80°C/300 V)
- Conductor cross section: 4x 0.25 mm² (Signal line)
- AWG signal line: 24
- Conductor structure signal line: 32x 0.10 mm
- Core diameter including insulation: 1.17 mm ±0.02 mm (Signal line)
- Thickness, insulation: ≥ 0.21 mm (Core insulation), approx. 0.5 mm (Outer cable sheath)
- Wire colors: brown, white, blue, black
- Overall twist: 4 wires, twisted
- External sheath, color: black-gray RAL 7021
- External cable diameter D: 3.95 mm ±0.15 mm
- Smallest bending radius, fixed installation: 20 mm
- Smallest bending radius, movable installation: 40 mm
- Number of bending cycles: 10000000
- Bending radius: 44 mm
- Traversing path: 10 m
- Traversing rate: 3 m/s
- Acceleration: 5 m/s²
- Cable weight: 23 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: PP
- Conductor material: Bare Cu litz wires
- Conductor resistance: max. 78 Ω/km (at 20 °C)
- Nominal voltage, cable: ≤ 300 V
- Test voltage, cable: ≥ 3000 V
- Flame resistance: in accordance with UL 758/1581 FT2, DIN EN 60332-2-2 (20 s)
- Halogen-free: in accordance with DIN VDE 0472 part 815
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Other resistance: Highly resistant to acids, alkaline solutions and solvents, hydrolysis and microbe resistant, partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Ambient temperature (operation) cable: -40 °C ... 80 °C (cable, fixed installation), -25 °C ... 80 °C (cable, flexible installation)
