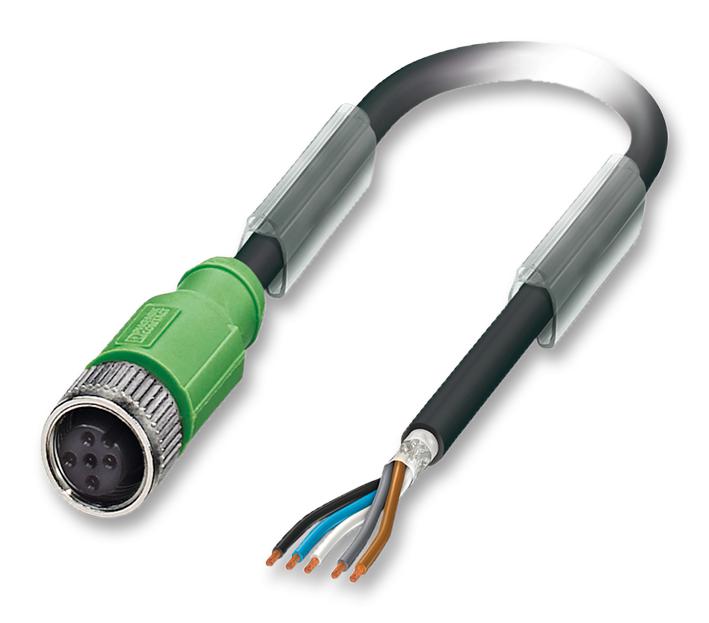

Phoenix Contact SAC5P50PURM12FSSH Sensor/Actuator Cable
The sensor/actuator cable SAC-5P-5,0-PUR/M12FS SH is a robust, shielded, halogen-free PUR cable designed for reliable signal transmission in industrial environments. It features a 5-position A-coded M12 connector, IP65/IP67 protection, and is rated for 4A at 60V. With a length of 5 meters, it offers excellent flexibility, resistance to hydrolysis, UV, microbe resistance, and a small bending radius for easy installation. Suitable for automation and sensor applications with high electromagnetic interference immunity.
Phoenix Contact SAC5P50PURM12FSSH Sensor/Actuator Cable Specifications:
- Number of positions: 5
- Rated current: 4A at 40°C
- Rated voltage: 60V
- Cable length: 5m
- Shielding: Tinned copper braided shield covering 85%
- External sheath color: black-gray RAL 7021
- External diameter: 5.9mm +0.2mm
- Bending radius: 59mm, Smallest bending radius: 29.5mm
- Operating temperature: -40°C to 80°C (fixed), -25°C to 80°C (flexible)
- Flammability: UL FT-2, halogen-free
- Material: PUR, copper conductors, NBR seals, TPU GF contact carrier
- connector: M12 straight, shielded, IEC 61076-2-101
- Standards: UL listed, cULus listed, EAC, RoHS compliant
- Environmental resistance: hydrolysis, microbe resistant, UV resistant
- Insertion/withdrawal cycles: >100
Buy the Phoenix Contact Series SAC-5P-5,0-PUR/M12FS SH Sensor/Actuator Cable: SAC5P50PURM12FSSH
Shop online today for the high-quality sensor and actuator cable designed for industrial automation. The SAC-5P-5,0-PUR/M12FS SH offers excellent shielding, environmental resistance, and flexible installation for robust signal transmission. It features a 5-position M12 connector, IP65/IP67 protection, and is halogen-free, making it suitable for harsh environments. With a length of 5 meters, this cable ensures quick, reliable connections in automation systems, providing durability and performance in challenging conditions. Purchase now for dependable industrial connectivity.
Order your Phoenix Contact Series SAC-5P-5,0-PUR/M12FS SH sensor/actuator cable today and enhance your industrial automation with high-quality, reliable connection solutions.
