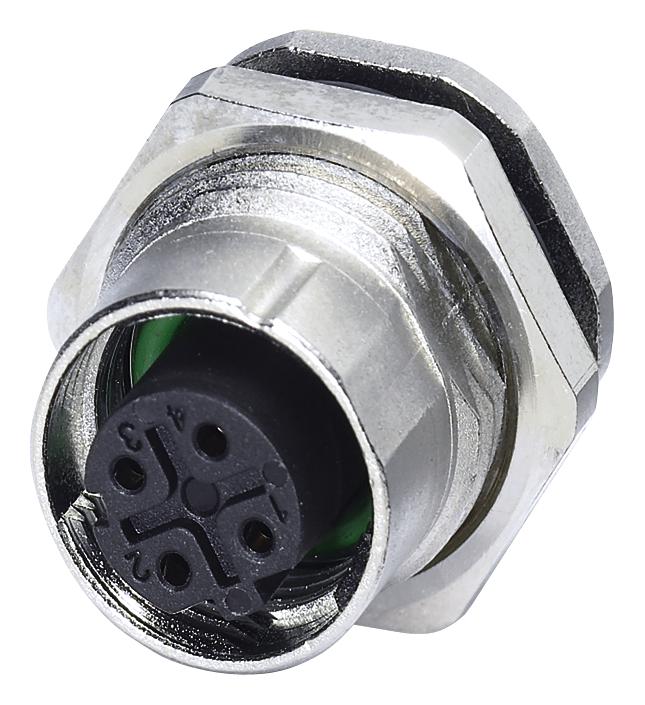

Phoenix Contact SACCDSIM12FSD4CONM16 industrial Ethernet connector
This panel feed-through connector combines an M12 socket with a feed-through design, ideal for Ethernet and PROFINET applications. It features four D-coded, shielded contacts with a straight solder connection, ensuring secure and reliable data, signal, and power transmission in industrial environments. The connector is IP67 rated for environmental protection, supports over 100 insertion cycles, and is mounted via rear M16 threading with a flat nut. Suitable for industrial automation, it complies with IEC 61076-2-101 standards and offers robust contact materials for long-term durability.
Phoenix Contact SACCDSIM12FSD4CONM16 industrial Ethernet connector Specifications:
- Number of positions: 4
- Rated current at 40°C: 4A
- Rated voltage: 250V
- Rated surge voltage: 25kV
- Cable compatibility: Solder pins for flexible or fixed installation
- Contact Material: CuZn with Au surface
- Locking system: SPEEDCON fast lock
- Degree of protection: IP67; sealed with protective cap for IP54
- Ambient temperature (operation): -25°C to 85°C (plug/socket), -40°C to 85°C (without mechanical actuation)
- Torque: 3.Nm to 4 Nm for installation
- Standards: IEC 61076-2-101
- Environmental compliance: China RoHS
Buy the Phoenix Contact SACCDSIM12FSD4CONM16 – Reliable Industrial Ethernet Connectors for Automation
Purchase the Phoenix Contact SACCDSIM12FSD4CONM16 online today—designed for robust industrial networking. This connector features IP67 protection, shielded D-coded contacts, and quick lock system, ensuring high performance in automation environments. Its rear M16 mounting makes installation straightforward, while its durable materials guarantee long-term reliability. Perfect for Ethernet and PROFINET systems, it supports over 100 insertion cycles, meets IEC standards, and offers sealed protection suitable for challenging industrial conditions. Enhance your automation setup with this high-quality connector.
Get Phoenix Contact SACCDSIM12FSD4CONM16 today—built for reliable Ethernet, PROFINET, and industrial automation applications.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCDSIM12FSD4CONM16?
You can click on the BUY or RFQ button to purchase SACCDSIM12FSD4CONM16 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCDSIM12FSD4CONM16?
You can download the SACCDSIM12FSD4CONM16 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCDSIM12FSD4CONM16?
Phoenix Contact
