Phoenix Contact SACCDSIM12MS17CONM16 Industrial Sensor Connector
The SACC-DSI-M12MS-17CON-M16 is a sensor/actuator flush-type connector designed for reliable signal, data, and power transmission. It features a 17-position M12 Speedcon shielded connector with straight solder pins, rear/m16 thread mounting, and fast locking system for quick cabling. Rated for IP67 protection, it operates in temperatures from -25 °C to 85 °C and provides a rated current of 15A at 30V. Suitable for industrial automation, it complies with IEC 61076-2-101 standards and offers more than 100 connection cycles.
Phoenix Contact SACCDSIM12MS17CONM16 Industrial Sensor Connector Specifications:
- Number of Positions: 17
- Rated Current at 40°C: 15A
- Rated Voltage: 30V
- Rated Surge Voltage: 0.8 kV
- Degree of Protection: IP67
- Operating Temperature Range: -25 °C to 85 °C (operation), -40 °C to 85 °C (without mechanical actuation)
- Ambient Temperature: -25 °C to 85 °C (plug/socket), -40 °C to 85 °C (cable, fixed), -25 °C to 85 °C (cable, flexible)
- Insulation Resistance: > 100 MΩ
- Connection Method: Solder Pins
- Insertion/Withdrawal Cycles: > 100
- Housing Material: Zinc die-cast, nickel-plated
- Contact Material: CuZn, Au-plated
- Sealing Material: NBR
- Mounting: Rear mounting with M16 x 1.5 thread

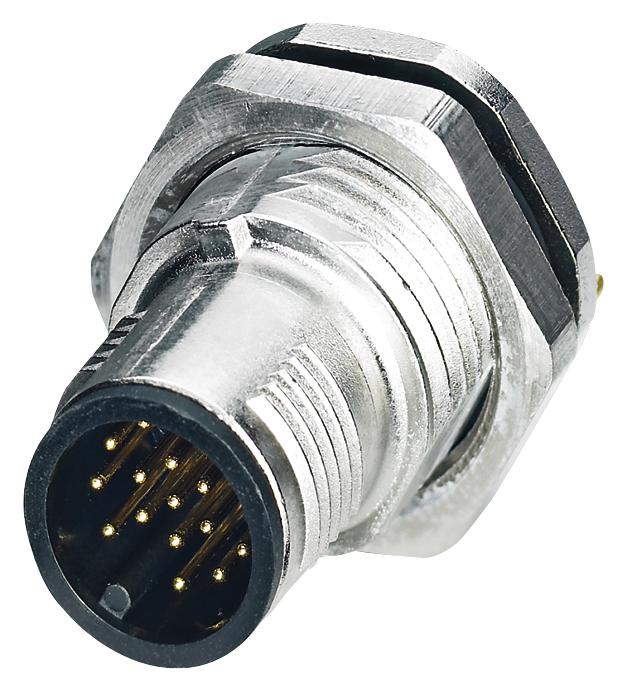

Buy the Buy Phoenix Contact SACC-DSI-M12MS-17CON-M16 Part Number 1441846 Online
Enhance your automation setup with this high-quality M12 sensor/actuator connector featuring IP67 protection, shielded design, and fast locking system. Its robust construction allows operation in harsh environments from -25 °C to 85 °C, making it ideal for industrial applications requiring dependable signal, data, and power transmission. Ease of mounting on panels with M16 threads, combined with over 100 insertion cycles, ensures durability and reliable operation. Perfect for automation, control cabinets, and field installations, this connector guarantees optimal performance and quick installation for your projects.
Order your Phoenix Contact Series1441846 sensor/actuator connector today and ensure reliable, quick connections for industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCDSIM12MS17CONM16?
You can click on the BUY or RFQ button to purchase SACCDSIM12MS17CONM16 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCDSIM12MS17CONM16?
You can download the SACCDSIM12MS17CONM16 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCDSIM12MS17CONM16?
Phoenix Contact
