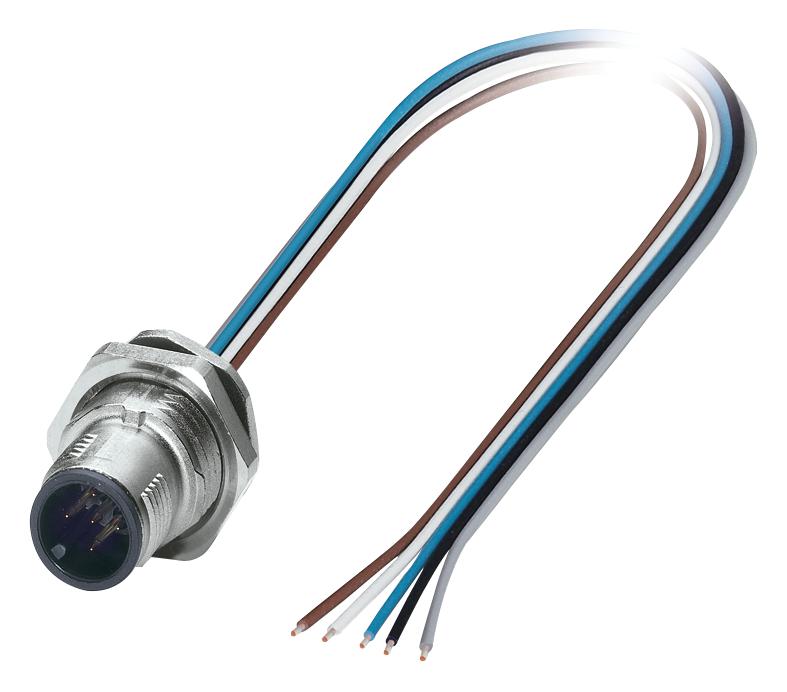

Phoenix Contact SACCDSIM12MS5CONM1605 M12 Flush Connector
The flush-type connector is a high-quality, quick-locking sensor/actuator cable connection designed for reliable signal, data, and power transmission in industrial environments. Equipped with 5 positions, M12 SPEEDCON, A-coded, and rear/mounting with M16 thread, it features a 0.5m TPE litz wire for durability. Sealed on the wiring side for leak-tightness, it supports over 100 insertion cycles, with IP65/IP67 protection, rated for 4A at 60V. Suitable for applications requiring secure, quick, and efficient connections in automation systems.
Phoenix Contact SACCDSIM12MS5CONM1605 M12 Flush Connector Specifications:
- Rated current: 4A at 40°C
- Rated voltage: 60V
- Surge voltage: 1.5kV
- Number of positions: 5
- Insulation resistance: > 100 MA
- Test voltage: 2000 V AC
- Ambient temperature: -25°C to 85°C (operation)
- Degree of protection: IP65/IP67
- Contact material: CuZn
- Contact surface: Gold-plated
- Material: PA 66 (body), zinc die-cast (knurls), FKM (sealing)
- Cable type: TPE litz wire
- Conductor cross-section: 0.34 mm²
- Conductor material: Tin-plated Cu
- Conductor insulation: TPE
- Wire colors: Black, brown, blue, white, gray
- Mechanical durability: > 100 insertion cycles
- Mounting: Rear with M16 thread
- Standards: IEC 61076-2-101
- Flammability rating: UL 94 V-0
Buy the Buy Phoenix Contact M12 Connector Part Number SACCDSIM12MS5CONM1605 Online
Purchase the M12 flush connector with 5 positions, IP67 protection, M16 mounting, and 0.5m TPE litz wire online for immediate use in automation and signal transmission applications. Pre-assembled for quick setup, sealed for leak tightness, and capable of over 100 connection cycles, this connector meets IEC 61076-2-101 standards, ensuring high durability and reliable performance in demanding industrial environments. Ideal for efficient, secure, and quick connection requirements in automation systems.
Get Phoenix Contact SACCDSIM12MS5CONM1605 today—built for precise, durable plug connections in automation and industrial systems.
