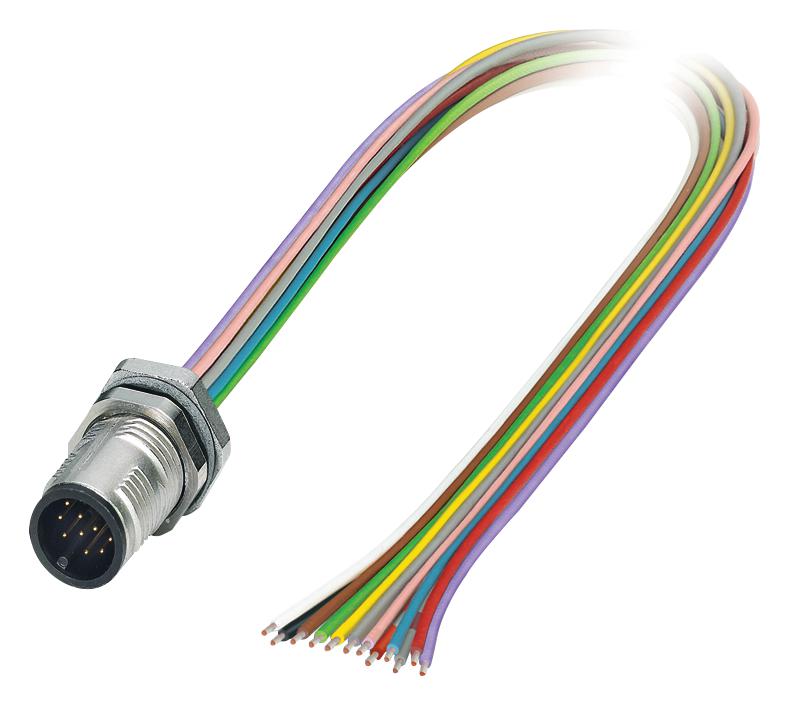

Phoenix Contact SACCDSIMS12CONM1205SCO M12 Sensor Connector
This flush-type sensor/actuator connector features 12 positions, M12 SPEEDCON locking system, and is designed for quick, reliable connections in automation and industrial applications. It comes pre-assembled with halogen-free TPE litz wire of 0.5 meters, ensuring ease of use and leak-tightness. With a robust IP67 degree of protection, rated at 15A and 30V, it supports high transmission safety, shield connection options, and withstands harsh environments. Suitable for quick installation with rear mounting, it is compliant with IEC 61076-2-101 standards and rated UL V-0 for flammability.
Phoenix Contact SACCDSIMS12CONM1205SCO M12 Sensor Connector Specifications:
- Number of positions: 12
- Rated current at 40°C: 15A
- Rated voltage: 30V
- Surge voltage: 0.8 KV
- Insulation resistance: > 100 MΩ
- Cable length: 0.5 meters
- Connector type: M12 flush-type lock
- Mounting: Rear mounting with flat nut
- Degree of protection: IP67
- Operating temperature: -25 °C to 85 °C (operation), -40 °C to 85 °C (cable, fixed), -25 °C to 85 °C (cable, flexible)
- Contact material: CuZn, gold-plated surface
- Housing material: PA 66
- Sealing material: NBR
- Certification: IEC 61076-2-101, UL V-0 flammability
- Connection: Individual wires with TPE litz wire
- Strength: > 100 insertion/withdrawal cycles
Buy the Phoenix Contact Series M12 Connector: SACCDSIMS12CONM1205SCO
Order the M12 Sensor Connector online today for fast, secure connections in industrial automation. Pre-assembled with 0.5 meter halogen-free TPE wire, IP67 rated for rugged environments. Designed for quick rear mounting with SPEEDCON locking for reduced cabling time, featuring high transmission safety, durability, and compliance with IEC standards. Perfect for sensor and actuator wiring, ensuring leak-tightness and reliable performance under harsh conditions. Purchase online now for immediate delivery and seamless integration into control systems.
Get Phoenix Contact SACCDSIMS12CONM1205SCO today—built for quick installation and reliable industrial connections.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCDSIMS12CONM1205SCO?
You can click on the BUY or RFQ button to purchase SACCDSIMS12CONM1205SCO from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCDSIMS12CONM1205SCO?
You can download the SACCDSIMS12CONM1205SCO datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCDSIMS12CONM1205SCO?
Phoenix Contact
