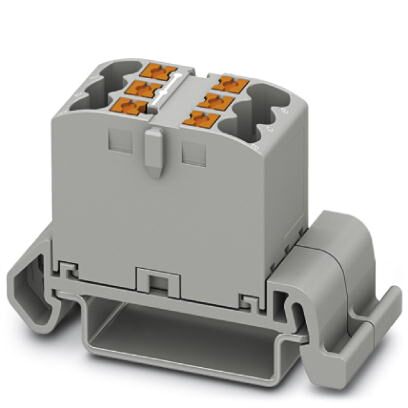

Phoenix Contact 3273132 Distribution Block
The PHOENIX CONTACT PTFIX 6X2.5-NS35A GY distribution block is designed for efficient and reliable power distribution in various industrial settings. Its ready-to-mount design, combined with tool-free Push-in direct connection technology, significantly reduces installation time. The block's horizontal alignment and clear color variants simplify wiring and maintenance. It offers flexible mounting options, including DIN rail, direct, or adhesive mounting, and transverse mounting saves space on the DIN rail. Suitable for a wide range of applications, this distribution block ensures safe and efficient power management.
Phoenix Contact 3273132 Distribution Block Specifications:
- Packing unit: 1 STK
- Minimum order quantity: 10 STK
- GTIN: 4055626391250
- Weight per Piece (excluding packing): 14.000 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Number of levels: 1
- Number of connections: 6
- Nominal voltage: 500 V
- Nominal current: 24 A
- Connection method: Push-in connection
- cross section: 0.14 - 4 mm²
- AWG: 26 - 12
- Width: 15.6 mm
- Height: 28.7 mm
- Color: gray
- mounting type: NS 35/7,5, NS 35/15
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Insulating material: PA
- Flammability rating: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation: 0.77 W
- Maximum load current: 24 A
- Nominal current IN: 24 A
- Nominal voltage UN: 500 V
- Open side panel: No
- Shock protection test specification: DIN EN 50274
- Finger protection: guaranteed
- Surge voltage test setpoint: 9.8 kV
- Power frequency withstand voltage setpoint: 1.89 kV
- Bending test rotation speed: 10 rpm
- Bending test turns: 135
- Conductor cross section tensile test: 0.14 mm²
- Tractive force setpoint (0.14 mm²): 10 N
- Conductor cross section tensile test (2.5 mm²): 50 N
- Conductor cross section tensile test (4 mm²): 60 N
- Tight fit on carrier: NS 35
- Setpoint: 1 N
- Result of voltage-drop test: ≤ 3.2 mV
- Short-time current (2.5 mm²): 0.3 kA
- Short-time current (4 mm²): 0.48 kA
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
