Phoenix Contact SACCEM12MS8CONM1605VA Flush Connector
This flush-type connector features an 8-pos. stainless steel body, A-coded and designed for front/screw mounting with M16 thread. It is pre-assembled with a 0.5-meter TPE litz wire, suitable for signal, data, and power transmission with standard pin assignments and optional shield connection for EMC compatibility. The connector offers high transmission safety, sealing on the wire side for leak-tightness, and is rated for IP67 and IP69K protection. It complies with IEC 61076-2-101 standards and is ideal for industrial automation and sensor applications.
Phoenix Contact SACCEM12MS8CONM1605VA Flush Connector Specifications:
- Dimensions: Length includes 0.5m cable, suitable for front mounting with M16 x 1.5 thread
- Ambient temperature (operation): -25°C to 85°C, without mechanical actuation: -40°C to 85°C
- Degree of protection: IP67, IP69K, sealed on wire side for leak-tightness
- Rated current: 2A at 40°C, Rated voltage: 30V, Surge voltage: 0.8kV
- Number of positions: 8, Contact material: Copper alloy, Contact surface: Au plated
- Connection method: Individual wires with TPE litz wire, conductor cross section: 0.25mm²
- Cable type: TPE litz wire, conductor structure: 14x 0.15mm, core diameter: 1.15mm ± 0.07mm
- Standards: IEC 61076-2-101, Flammability: UL 94 VO, Environmental compliance: China RoHS
- Ingress protection: IP67 and IP69K rated for harsh environments
- Inserts/withdrawal cycles: Over 100, with torque of 3-4 Nm during installation
- Sealing material: FKM, Material: Stainless steel (knurls), Contact carrier: PAG6 GF

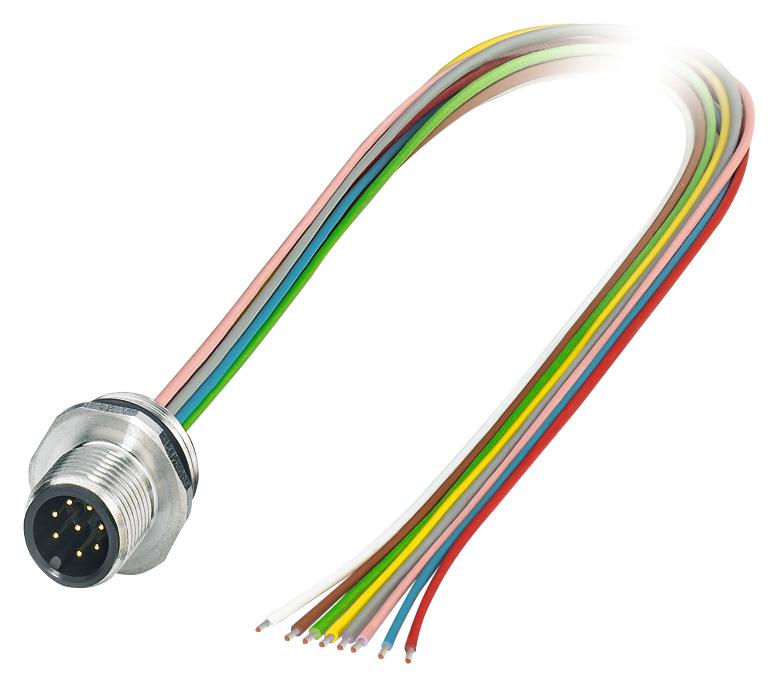

Buy the Buy Phoenix Contact SACC-E-M12MS-8CON-M16/0,5 VA Part Number 1405221 Online
Purchase the Phoenix Contact flush-type connector with 8 positions, stainless steel body, and 0.5m TPE wire now. Its IP67/IP69K rating ensures excellent environmental protection, making it ideal for industrial automation, sensors, and data transmission applications. Pre-assembled and sealed for leak-tightness, it offers high transmission safety with optional EMC shielding. Designed for front mounting with M16 thread, it withstands harsh industrial environments and over 100 insertion cycles, ensuring durability, reliability, and seamless installation for demanding industrial and sensor setups.
Buy Phoenix Contact SACC-E-M12MS-8CON-M16/0,5 VA connector now and experience unmatched reliability and performance in industrial sensor connections.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCEM12MS8CONM1605VA?
You can click on the BUY or RFQ button to purchase SACCEM12MS8CONM1605VA from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCEM12MS8CONM1605VA?
You can download the SACCEM12MS8CONM1605VA datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCEM12MS8CONM1605VA?
Phoenix Contact
