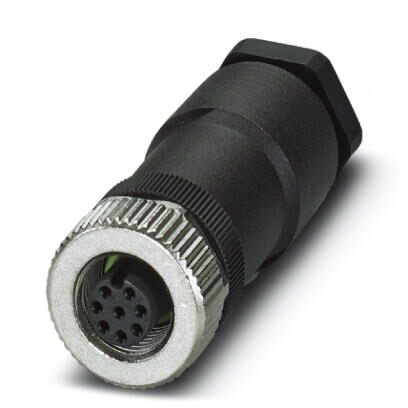

Phoenix Contact SACCM12FS8CONPG11M 8-Position M12 Socket Connector
The PHOENIX CONTACT SACC-M12FS-8CON-PG11-M is a robust and reliable 8-position M12 socket connector ideal for industrial applications requiring secure and protected data transmission. Its A-coded design ensures compatibility with standard M12 systems. The connector's zinc die-cast, nickel-plated housing provides excellent protection against environmental factors, while the Pg11 cable gland allows for secure and strain-relieved cable connections. It is suitable for applications in automation, building technology, and transportation systems where reliable power and data connectivity are essential. The connector's screw connection ensures a secure and durable connection, minimizing the risk of disconnections and downtime.
Phoenix Contact SACCM12FS8CONPG11M 8-Position M12 Socket Connector Specifications:
- Packing unit: 1 pc
- GTIN: 4046356904667
- Weight per Piece (excluding packing): 20.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Diameter housing: 20 mm
- Length: 60.4 mm
- External cable diameter: 8 mm ... 10 mm
- Stripping length of the sheath: 20 mm
- Stripping length of the individual wire: 5 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Degree of protection: IP67
- Rated current at 40°C: 2 A
- Rated voltage: 30 V AC / 30 V DC
- Number of positions: 8
- Color handle area: black
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Conductor cross section: 0.25 mm² ... 0.5 mm² (without ferrule)
- Conductor cross section AWG: 24 ... 20 (without ferrule)
- Insertion/withdrawal cycles: ≥ 100
- Torque (M12 knurl): 0.4 Nm
- Torque (Screw terminal blocks): 0.2 Nm
- Torque (Pressure screw with sleeve housing): 1.5 Nm ... 2 Nm
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA
- Material of grip body: PA
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Standard designation: M12 connector
- China RoHS: Environmentally Friendly Use Period = 50
- Lead: 7439-92-1
