Phoenix Contact SMKDS5295 PCB Terminal Block
The PCB terminal block SMKDS 5/ 2-9,5 provides a reliable screw connection with tension sleeve, rated for 32 A and 1000 V. It features an angled connection for multi-row PCB arrangement, quick mounting with wave soldering, and comes in green. Suitable for connecting two conductors, it ensures low temperature rise due to high contact force, making it ideal for industrial automation and control systems. Its construction includes M3 screw threads, 0.9x0.9 mm pin dimensions, and a hole diameter of 1.3 mm, maximizing connection stability and electrical safety.
Phoenix Contact SMKDS5295 PCB Terminal Block Specifications:
- Rated current: 32 A
- Rated voltage: 1000 V
- Pitch: 9.52 mm
- Number of positions: 2
- Conductor cross section: solid 0.2-6 mm², flexible 0.2-4 mm²
- Connection method: Screw connection with tension sleeve
- Mounting: Wave soldering
- Color: Green
- Screw thread: M3
- Tightening torque: min 0.5 Nm, max 0.6 Nm
- Length: 18.5 mm
- Construction height: 22 mm
- Pin dimensions: 0.9x0.9 mm
- Hole diameter: 1.3 mm
- Flammability rating: UL 94 V2
- Rated surge voltage: 6kV
- Standards: EN-VDE
- Insulating material: PA
- Solder pin surface: Sn

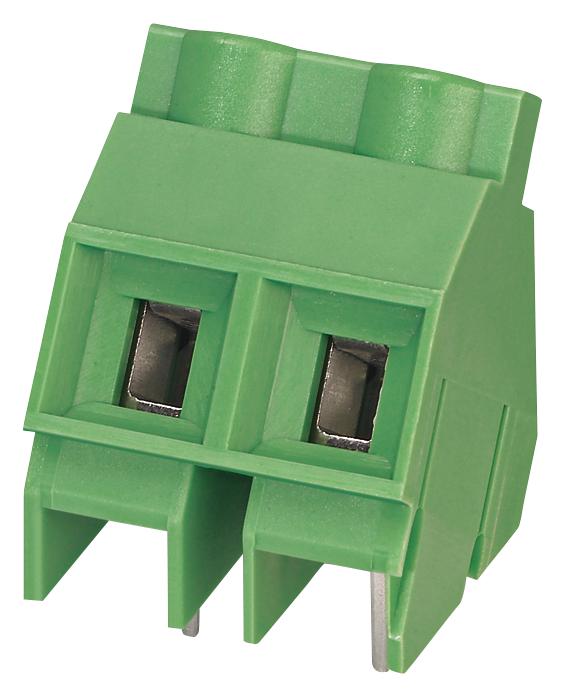

Buy the Buy Phoenix Contact PCB Terminal Block Part Number SMKDS5295 Online
Discover the Phoenix Contact PCB terminal block SMKDS 5/ 2-9,5, rated for 32A and 1000V, featuring screw connection, wave soldering mounting, and angled design for efficient multi-row layouts. Its high contact force ensures low temperature rise, making it perfect for demanding automation and industrial control systems. The secure M3 screw thread and compatible conductor sizes make installation quick and reliable, providing long-lasting electrical connection in various environments. Order online today for a dependable, high-quality terminal solution that ensures safety and performance in your projects.
Get Phoenix Contact SMKDS5295 today—designed for reliable connections with high current capacity and industrial-grade durability.
