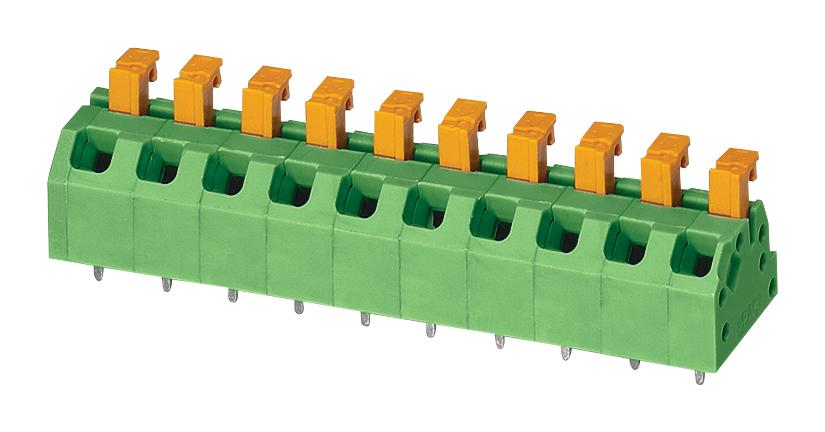

Phoenix Contact SPTAF11050LL PCB Terminal Block
The PCB connection terminal block SPTAF 1/10-5,0-LL offers a space-saving, reliable push-in spring connection for industrial PCB wiring and automation systems. It features a 5 mm pitch, 10 positions, and a maximum current rating of 13.5 A at 160 V. Its compact design with wave soldering mounting and easy finger-operated release button provides secure, stable connections, quick testing, and tool-free operation. Ideal for demanding environments where space efficiency and stable long-term contacts are essential in industrial control panels and automation equipment.
Phoenix Contact SPTAF11050LL PCB Terminal Block Specifications:
- Dimensions: Length 26 mm, solder pin length 2.6 mm, pin size 0.75 x 0.3 mm, hole diameter 1.4 mm
- Pitch: 5 mm, number of positions: 10, width: not specified
- Rated voltage: 160 V, current: 13.5 A, surge voltage: 2.5 kV
- Connection method: Push-in spring connection, cable cross-section: solid 0.2-0.75 mm², flexible 0.2-1 mm²
- Solder pin surface: Sn, stripping length: 8 mm, mounting: Wave soldering
- Standards: EN-VDE compliant, maximum conductor cross-section: 1 mm²
Buy the Phoenix Contact SPTAF11050LL – Reliable PCB Connection Terminal Block for Industrial Applications
Order the PCB connection terminal block SPTAF 1/10-5,0-LL from Phoenix Contact today. This reliable, space-efficient terminal features a push-in spring connection, 10 positions, and a 5 mm pitch, making it ideal for automation and control panels. Its 13.5 A current rating and wave soldering compatibility ensure long-term stability in industrial settings. Easy to operate with finger-operated release buttons, it simplifies testing and installation, providing a professional solution for high-demand wiring needs. Purchase online now for fast, secure delivery.
Buy Phoenix Contact SPTAF11050LL now and experience secure, space-saving PCB wiring with quick testing and tool-free push-in connection suitable for industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact SPTAF11050LL?
You can click on the BUY or RFQ button to purchase SPTAF11050LL from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SPTAF11050LL?
You can download the SPTAF11050LL datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SPTAF11050LL?
Phoenix Contact
