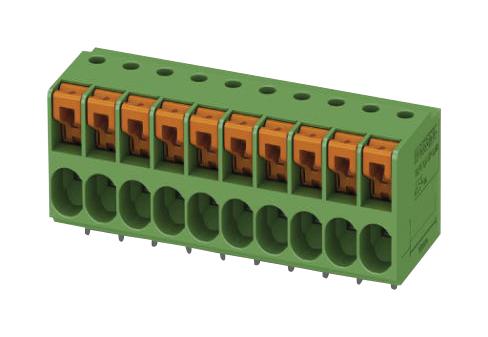

Phoenix Contact TDPT2511SP508 PCB terminal block
The PCB terminal block TDPT 2,5/11-SP-5,08 is a reliable, easy-to-use connectivity component suitable for wave soldering applications. It features a push-in spring connection method for quick, tool-free installation and accommodates conductors with cross sections from 0.2 mm² to 4 mm². Rated for 32 A and 400 V, it has 11 positions with a 5.08 mm pitch, optimized for efficient circuit integration. Its durable tin-plated Cu alloy contacts ensure long-term stability, making it ideal for industrial automation, control systems, and PCB connections.
Phoenix Contact TDPT2511SP508 PCB terminal block Specifications:
- Pitch: 5.08 mm
- Number of positions: 11
- Connection method: Push-in spring connection
- Mounting: Wave soldering
- Rated current: 32 A
- Rated insulation voltage: 400 V
- Conductor cross section: solid 0.2 mm² to 4 mm², flexible 0.2 mm² to 4 mm², AWG 24 to 12
- Housing color: Green (6021)
- Length: 18 mm
- Width: 56.68 mm
- Height (without solder pin): 19 mm
- Solder pin: 3.5 mm
- Pin dimensions: 0.8 x 0.8 mm
- Pin spacing: 8.7 mm
- Hole diameter for PCB: 1.4 mm
- Material: Cu alloy, Tin-plated
- Environmental conditions: Storage -40°C to 70°C, Operation -40°C, Assembly -6°C to 105°C
- Standards: IEC 60947-7-4, UL 94 V-0 flammability rating
- Minimum conductor pull-out force: >10 N (0.2 mm²), >60 N (4 mm²)
- Approvals: IEC, UL, VDE
Buy the Phoenix Contact TDPT2511SP508 – Reliable PCB Terminal Block for Industrial Applications
Enhance your electronic assembly with the reliable PCB terminal block designed for quick installation and secure connections. Its push-in spring mechanism simplifies wiring, saving time and reducing labor costs. Rated for 32 A and 400 V, it’s suitable for a broad range of industrial applications, including automation systems and PCB wiring. The durable tin-plated contacts ensure long-term stability and consistent performance. Secure your projects with this high-quality terminal block available online for fast, convenient procurement.
Buy Phoenix Contact TDPT2511SP508 now and experience unmatched reliability and performance in your PCB connections and control systems.
Frequently Asked Questions
Where can I buy Phoenix Contact TDPT2511SP508?
You can click on the BUY or RFQ button to purchase TDPT2511SP508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part TDPT2511SP508?
You can download the TDPT2511SP508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of TDPT2511SP508?
Phoenix Contact
