Phoenix Contact TDPT252SP508 PCB Terminal Block
This PCB terminal block features a 5.08 mm pitch and 2 positions, designed for reliable push-in spring connection and wave soldering mounting. It supports a rated current of 32 A and a voltage of 400 V, with solid or flexible conductors ranging from 0.2 mm² to 4 mm². The contact material is copper alloy, tin-plated for corrosion resistance. Its compact dimensions are 18 mm in length, 10.96 mm in width, and 19 mm in height without solder pins. Designed for stable long-term connection, it ensures safety with high insulation and surge voltage ratings, suitable for industrial control and distribution applications.
Phoenix Contact TDPT252SP508 PCB Terminal Block Specifications:
- Pitch: 5.08 mm
- Number of positions: 2
- Connection method: Push-in spring connection
- Mounting: Wave soldering
- Rated current: 32 A
- Rated insulation voltage: 400 V
- Rated surge voltage: 4 kV
- Conductor cross section: 0.2 mm² ... 4 mm² solid or flexible
- Wire range: 24 ... 12 AWG
- Contact material: Copper alloy, tin-plated
- Housing color: Green (6021)
- Dimensions: Length 18 mm, Width 10.96 mm, Height 19 mm without solder pin
- Solder pin length: 3.5 mm
- Pin dimensions: 0.8 x 0.8 mm
- Pin spacing: 8.7 mm
- Hole diameter for PCB: 1.4 mm
- Tensile force: >10 N (0.2 mm²), >60 N (4 mm²)
- Compliance: IEC 60068-2-54, IEC 60947-7-4, UL 94V-0 flammability rating
- Temperature range (operation): -40°C to +105°C
- Ambient temperature during storage/transport: -40°C to 70°C

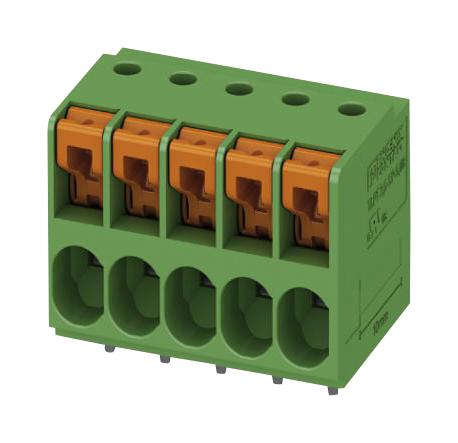

Buy the Buy Phoenix Contact PCB Terminal Block Part Number TDPT252SP508 Online
Discover the high-quality PCB terminal block with a 5.08 mm pitch, ideal for industrial applications requiring reliable push-in spring connections. This model supports 32 A current and 400 V voltage ratings, accommodating solid or flexible conductors from 0.2 mm² to 4 mm². Its compact size and wave soldering compatibility make installation straightforward in control cabinets or distribution boards. Tin-plated copper contacts ensure corrosion resistance, while the color-coded actuation lever simplifies handling, providing stable long-term electrical connections with high safety standards for demanding environments.
Buy Phoenix Contact TDPT 2,5/ 2-SP-5,08 terminal block now and ensure reliable, easy-to-install connections for your industrial control projects.
Frequently Asked Questions
Where can I buy Phoenix Contact TDPT252SP508?
You can click on the BUY or RFQ button to purchase TDPT252SP508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part TDPT252SP508?
You can download the TDPT252SP508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of TDPT252SP508?
Phoenix Contact
