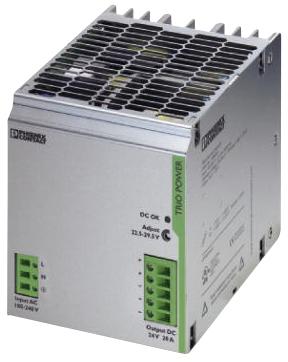

Phoenix Contact TRIOPS1AC24DC20 Power Supply Unit
The power supply unit provides reliable power with a 24 V DC output at 20 A, designed for DIN rail mounting. It features a robust metal housing, wide temperature operation from -25°C to +70°C, and high MTBF over 915,000 hours. With standard safety features including overload and surge protection, it ensures continuous operation in industrial environments. The unit supports parallel and series connections, adjustable output voltage, and complies with international safety and EMC standards, making it suitable for industrial automation and machine manufacturing applications.
Phoenix Contact TRIOPS1AC24DC20 Power Supply Unit Specifications:
- Input Voltage Range: 85 VAC ... 264 V AC
- Input Frequency: 45 Hz... 65 Hz
- Nominal Input Voltage: 100 VAC... 240 V AC
- Output Voltage: 24 V DC (adjustable 22.5V to 29.5 V)
- Output Current: 20 A
- Output Power: 480 W
- Ripple & Noise: < 10 mVpp
- Efficiency: 91%
- Dimensions: Width 115 mm, Height 130 mm, Depth 152.5 mm
- Weight: 2.2 kg
- Temperature Range (Operation): -25°C to +70°C (derating from 55°C)
- MTBF: > 915,000 hours
- Protection: Overcurrent, short circuit, surge, and dielectric strength 4 kV AC
- Mounting: DIN rail NS 35, EN 60715, horizontal position
- Standards: UL, cUL, EAC, EN 61000-6-2
Buy the Phoenix Contact Series TRIO Power: Power Supply 24V DC 20A
Secure your automation systems with the Phoenix Contact TRIO power supply. Designed for industrial environments, it delivers a reliable 24V DC output at 20A, ensuring continuous operation. Its rugged metal housing withstands harsh conditions with a wide temperature range from -25°C to +70°C. Features include adjustable output voltage, high efficiency of 91%, and comprehensive safety features such as surge and short circuit protection. Perfect for machine manufacturing and automation, this power supply guarantees maximum uptime and operational reliability in demanding industrial settings.
Buy Phoenix Contact TRIO-PS/1AC/24DC/20 power supply now and experience unmatched reliability and performance for industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact TRIOPS1AC24DC20?
You can click on the BUY or RFQ button to purchase TRIOPS1AC24DC20 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part TRIOPS1AC24DC20?
You can download the TRIOPS1AC24DC20 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of TRIOPS1AC24DC20?
Phoenix Contact
