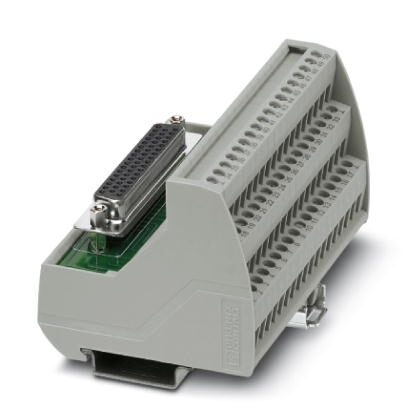

Phoenix Contact VIP3SCD50SUBF Interface Module
The PHOENIX CONTACT VIP-3/SC/D50SUB/F interface module is a versatile solution for connecting field devices to control systems. It supports 50 positions and utilizes a screw connection for secure and reliable connections. Designed according to IEC 60603-13, this module simplifies integration into industrial automation and control systems, offering a 1:1 connection between field-level and controller-level circuits. Its metal foot provides stability when mounted on NS 35 rails, and it operates effectively within a wide temperature range, making it suitable for various industrial environments.
Phoenix Contact VIP3SCD50SUBF Interface Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 240.0 g
- Custom tariff number: 85369010
- Country of origin: United States
- Width: 98.2 mm
- Height: 69 mm
- Depth: 62 mm
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Max. perm. operating voltage: 125 V AC/DC
- Max. perm. current (per branch): 2 A
- Number of positions: 50
- Status display: No
- Mounting position: any
- Standards/regulations: IEC 60664, DIN EN 50178, IEC 62103
- Rated surge voltage: 1.2 kV
- Degree of pollution: 2
- Overvoltage category: II
- Connection method (Field level): Screw connection
- Stripping length (Field level): 8 mm
- Screw thread (Field level): M 3
- Conductor cross section solid (Field level): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (Field level): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (Field level): 24 ... 12
- Connection method (Controller level): D-SUB socket strip
- Number of connections (Controller level): 1
- Connection in acc. with standard: CSA, IEC / EN
- UL Recognized Current: 1 A
- UL Recognized Voltage: 125 V
- cUL Recognized Current: 1 A
- cUL Recognized Voltage: 125 V
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27250313
- eCl@ss 5.1: 27250313
- eCl@ss 6.0: 27242608
- eCl@ss 7.0: 27141152
- eCl@ss 8.0: 27141152
- ETIM 2.0: EC001434
- ETIM 3.0: EC001604
- ETIM 4.0: EC001604
- ETIM 5.0: EC002780
- UNSPSC 6.01: 30211824
- UNSPSC 7.0901: 39121421
- UNSPSC 11: 39121421
- UNSPSC 12.01: 39121421
- UNSPSC 13.2: 39121421
