QUALTEK ELECTRONICS 701W1531 Power Inlet

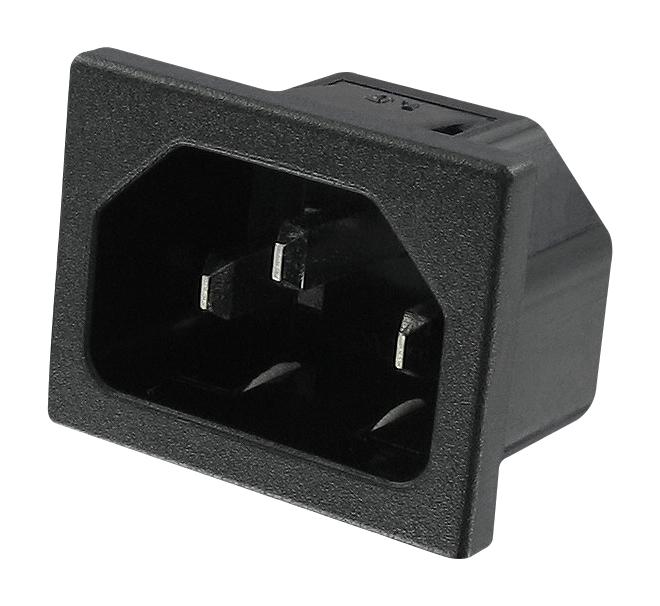

This IEC 320 C14 power inlet is designed for AC receptacle applications, featuring a snap-in mount for easy installation. It is rated for 15A at 250VAC per UL and CSA standards, and 10A at 250VAC according to VDE. The terminals support .250 quick disconnects, suitable for panel thicknesses of 1.5 mm, with options for 1.0 mm, 2.0 mm, and 3.0 mm. Made with durable bronze strips and a black PC insulator, this inlet ensures reliable power connections for electronic equipment.
QUALTEK ELECTRONICS 701W1531 Power Inlet Specifications:
- Rated Current: 15A at 250VAC (UL,CSA)
- Rated Current: 10A at 250VAC (VDE)
- Approvals: UL,CSA,VDE,CCC
- Panel Thickness: 1.5mm (also available for 1.0mm, 2.0mm, 3.0mm)
- Terminal Type: .250 quick disconnect
- Material: Bronze strip, tin-plated, black PC insulator
- Dimensions: Compatible with panel cutout for IEC 320 C14 inlet
- Certifications: RoHS compliant
- Mounting: Snap-in installation
- Temperature Range: Suitable for typical electronic device environments
Buy the Qualtek Series IEC 320 C14 Power Inlet: 701W1531
Purchase the Qualtek Series IEC 320 C14 Power Inlet online today and enjoy dependable power connectivity for your electronic and electrical projects. This durable inlet features a snap-in mount for quick installation, rated for 15A at 250VAC according to UL and CSA standards, and 10A at 250VAC per VDE. With terminals supporting quick disconnects, it is compatible with panel thicknesses of 1.0 mm, 1.5 mm, 2.0 mm, and 3.0 mm. Trust in this RoHS-compliant component for safe and efficient power delivery in your systems.
Order your Qualtek Series IEC 320 C14 Power Inlet today and ensure reliable power connections for your electronic projects with high-quality, easy-to-install components.
