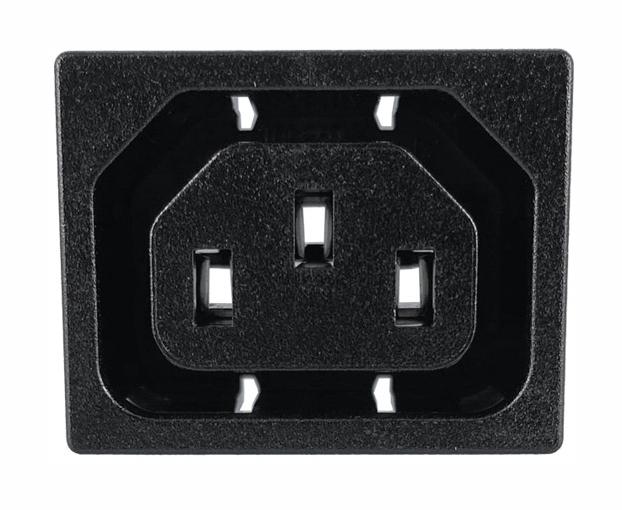

QUALTEK ELECTRONICS 716W1505 IEC Power Outlet
This IEC 320 C13 power outlet is rated for 15A at 250VAC according to UL and CSA standards, and 10A at 250VAC per VDE standards. It features a snap-in mounting design, solder tab terminals, and supports panel thicknesses of 1.5 mm, with additional options for 1.0, 2.0, 2.5, and 3.0 mm. Made from high-quality thermoplastic, this receptacle ensures reliable electrical connection. It has a dielectric strength of 2000V AC for one minute, over 100M ohm insulation resistance, and is RoHS compliant, meeting international safety and environmental standards.
QUALTEK ELECTRONICS 716W1505 IEC Power Outlet Specifications:
- Rated Current: 15A at 250VAC (UL/CSA), 10A at 250VAC (VDE)
- Contact Material: Copper alloy
- Insulation Resistance: Over 100 MΩ at 500VDC
- Dielectric Strength: 2000V AC for one minute
- Panel Thickness: Supports 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm
- Mounting: Snap-in design with solder tab terminals
- Material: High-quality thermoplastic
- RoHS Compliant: Yes
- Approval: UL, CSA, VDE
- Dimensions: Compatible with 16.0 x 29.54 mm panel cutout
Buy the Qualtek Series IEC 320 C13 Power Outlet: 716W1505
Purchase the Qualtek Series IEC 320 C13 Power Outlet 716W1505 online today and enhance your electronic setup with a reliable, high-quality power connection. Designed with a robust snap-in mounting, solder tab terminals, and support for various panel thicknesses, this outlet ensures secure installation and safe operation. With a dielectric strength of 2000V AC and insulation resistance exceeding 100M ohm, it meets UL, CSA, and VDE standards. RoHS compliant, this versatile receptacle is ideal for commercial and industrial applications requiring dependable power distribution.
Order your Qualtek Series IEC 320 C13 Power Outlet 716W1505 today and enjoy reliable, high-quality power connectivity for your electronic projects.
