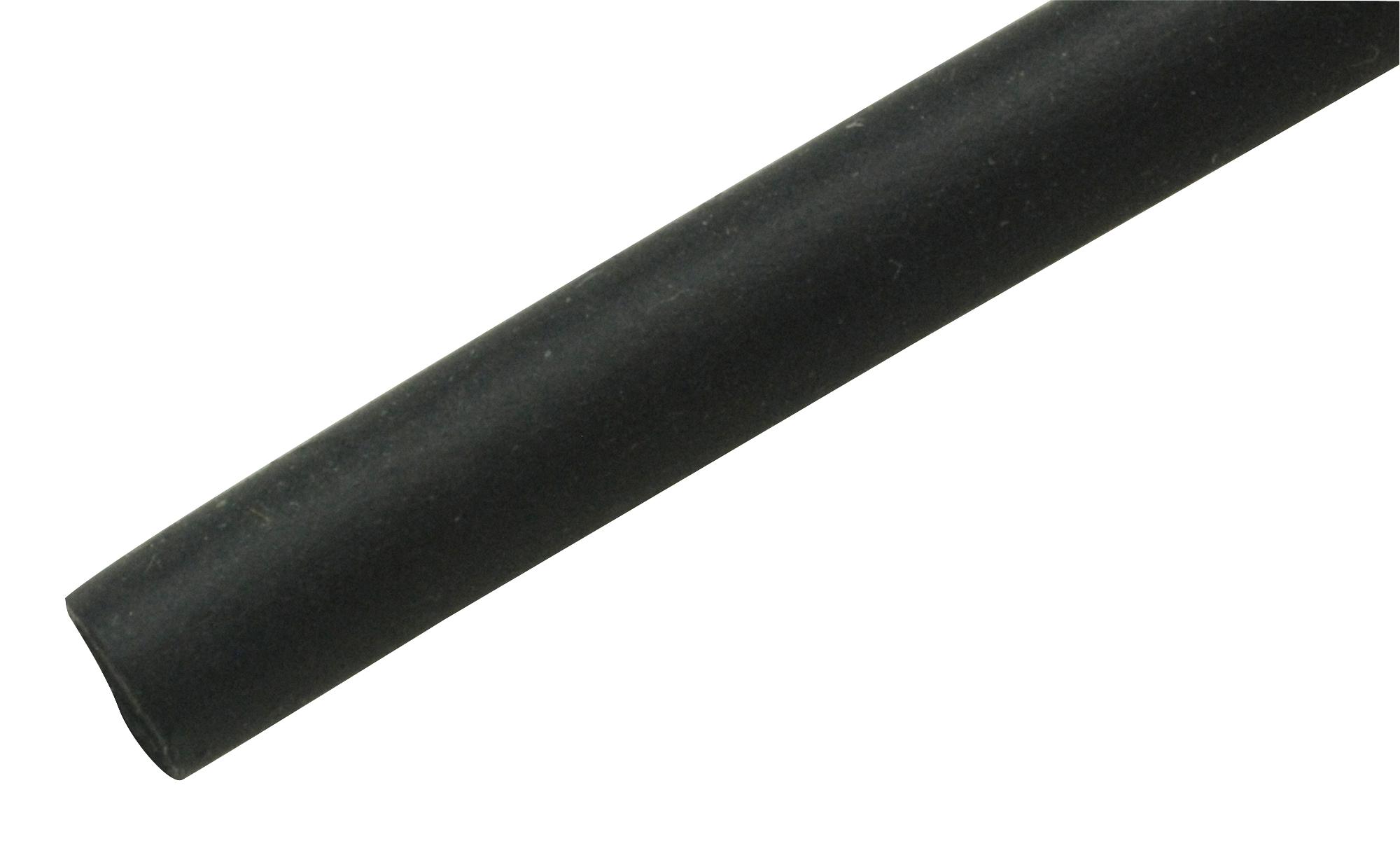

QUALTEK ELECTRONICS Q2F301QB48IN2 Heat Shrink Tubing
Heat shrink thin wall tubing designed for electrical insulation and protection in various applications, including military and commercial uses. It features a shrink ratio of 2:4, operating temperature from -55°C to +135°C, and full recovery at 100°C. Made from RoHS-compliant, eco-friendly materials free of PBBs, PBBOs, PBBEs, cadmium, and lead, this tubing offers high tensile strength, excellent elongation, and flame retardance. Available in standard colors like black, red, blue, and white, it maintains integrity with high dielectric strength and resistance to corrosion and aging, ensuring durability in demanding environments.
QUALTEK ELECTRONICS Q2F301QB48IN2 Heat Shrink Tubing Specifications:
- Material: RoHS-compliant, no PBBs, PBBOs, PBBEs, cadmium, lead
- Operating Temperature: -55°C to +135°C
- Shrink Ratio: 2:4
- Full Recovery Temperature: 100°C
- Minimum Shrink Temperature: 70°C
- Tensile Strength: >14 MPa
- Ultimate Elongation: > 600%
- Dielectric Strength: >20kV / mm
- Volume Resistance: >10^12 Ω·cm
- Flammability: VW-1, passes UL 94V-0
- Color options: Black, red, blue, yellow, green, white, clear
- Standards: SAE-AMS-DTL-23053/5 Class 1 & 3, Sony-SS-00259, VW-1, UL 94V-0
- Operating Temperature (IEC 216): -55°C to +135°C
- Product Dimensions: varies with size, typical wall thickness 0.40-0.68 mm, length up to 300 feet
- Applications: electrical insulation, wire bundling, wire marking, in-line component protection, and military-grade shielding
Buy the Buy Heat Shrink Thin Wall Tubing Part Number Q2F301QB48IN2 Online
Order the high-quality heat shrink tubing Q2F301QB48IN2 now from our online store. This versatile and flame-retardant tubing provides excellent electrical insulation, protection against abrasion, and environmental resistance. Perfect for wiring harnesses, connections, and in-line components in military and commercial applications. Its flexible design and high dielectric strength ensure dependable performance under extreme temperatures. Fast delivery and easy online purchasing make it simple to get the reliable products you need for all your electrical insulation tasks. Shop now for superior quality and peace of mind.
Buy Heat Shrink Thin Wall Tubing Q2F301QB48IN2 now and experience unmatched electrical insulation, durability, and environmental resistance.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F301QB48IN2?
You can click on the BUY or RFQ button to purchase Q2F301QB48IN2 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F301QB48IN2?
You can download the Q2F301QB48IN2 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F301QB48IN2?
QUALTEK ELECTRONICS
