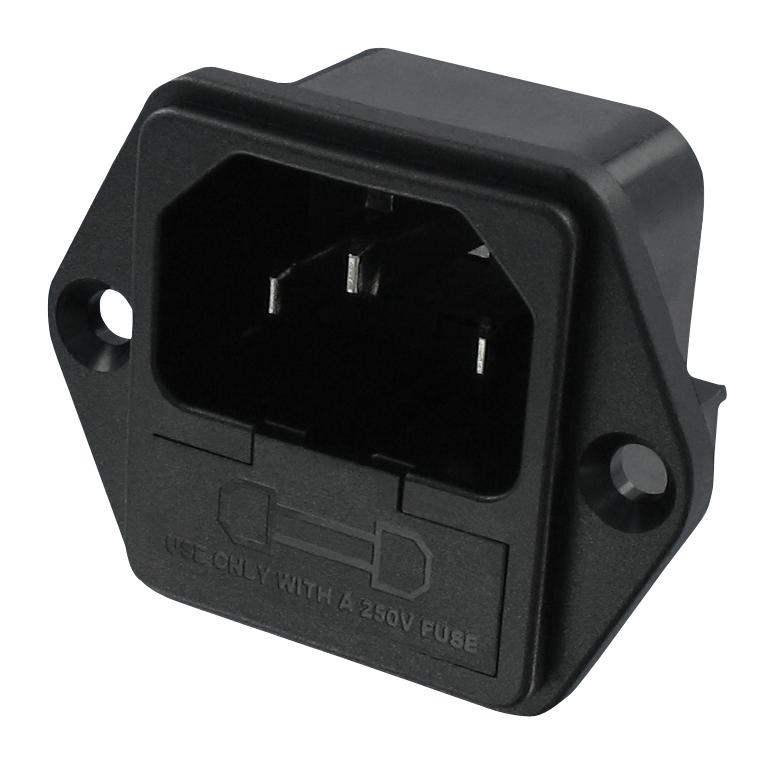

QUALTEK ELECTRONICS 719W0003 Power Inlet
This IEC 320 C14 power inlet with fuseholder is designed for secure screw mounting, suitable for AC power connections in various electronic applications. It features compatible terminals for .187 Q.D. or solder connections, supporting a maximum current of 10A at 250VAC, meeting UL and CSA standards, with VDE approval available. The component is constructed from high-quality materials, including nylon molding rated UL 94 V-0 for flammability and brass contacts with nickel and tin plating for durability. It also provides reliable insulation resistance over 100M ohm and dielectric strength up to 2000VAC, ensuring electrical safety and compliance.
QUALTEK ELECTRONICS 719W0003 Power Inlet Specifications:
- Material: Nylon, UL 94 V-0 flame rating
- Contacts: Brass, nickel-plated pins, tin-plated tags
- Rating: 10A 250V AC controlled
- Insulation Resistance: >100M Ohm at 500VDC
- Dielectric Strength: 2000VAC/1mA for 1 minute
- Operating Temperature: -40°C to +70°C
- Maximum Pin Temperature: +65°C
- Approval: UL, CSA, VDE (except 719W series)
- Configuration: Dual fuseholder, one active, one spare (fuses not included), size 5x20mm recommended
- Dimensions: Based on IEC 320 C14 standard, mounting hole suitable for secure attachment
- Certifications: RoHS compliant, UL Listed, CSA Certified, VDE Approved
Buy the Buy Qualtek IEC 320 C14 Power Inlet Part Number 719W0003 Online
Purchase the Qualtek Power Inlet with fuseholder online for dependable electrical connections in your electronic projects. This IEC 320 C14 inlet is designed to support up to 10A at 250VAC, featuring secure screw mounting, compatible with .187 Q.D. or solder terminals. Made with high-quality nylon and brass contacts, it provides excellent insulation and durability. Certified for UL, CSA, and VDE, this component ensures safety and compliance for commercial or industrial use. Easy ordering and fast delivery make it ideal for installers and engineers.
Get Qualtek 719W0003 today—designed for reliable power connections with high safety standards and fuseholder functionality.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 719W0003?
You can click on the BUY or RFQ button to purchase 719W0003 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 719W0003?
You can download the 719W0003 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 719W0003?
QUALTEK ELECTRONICS
