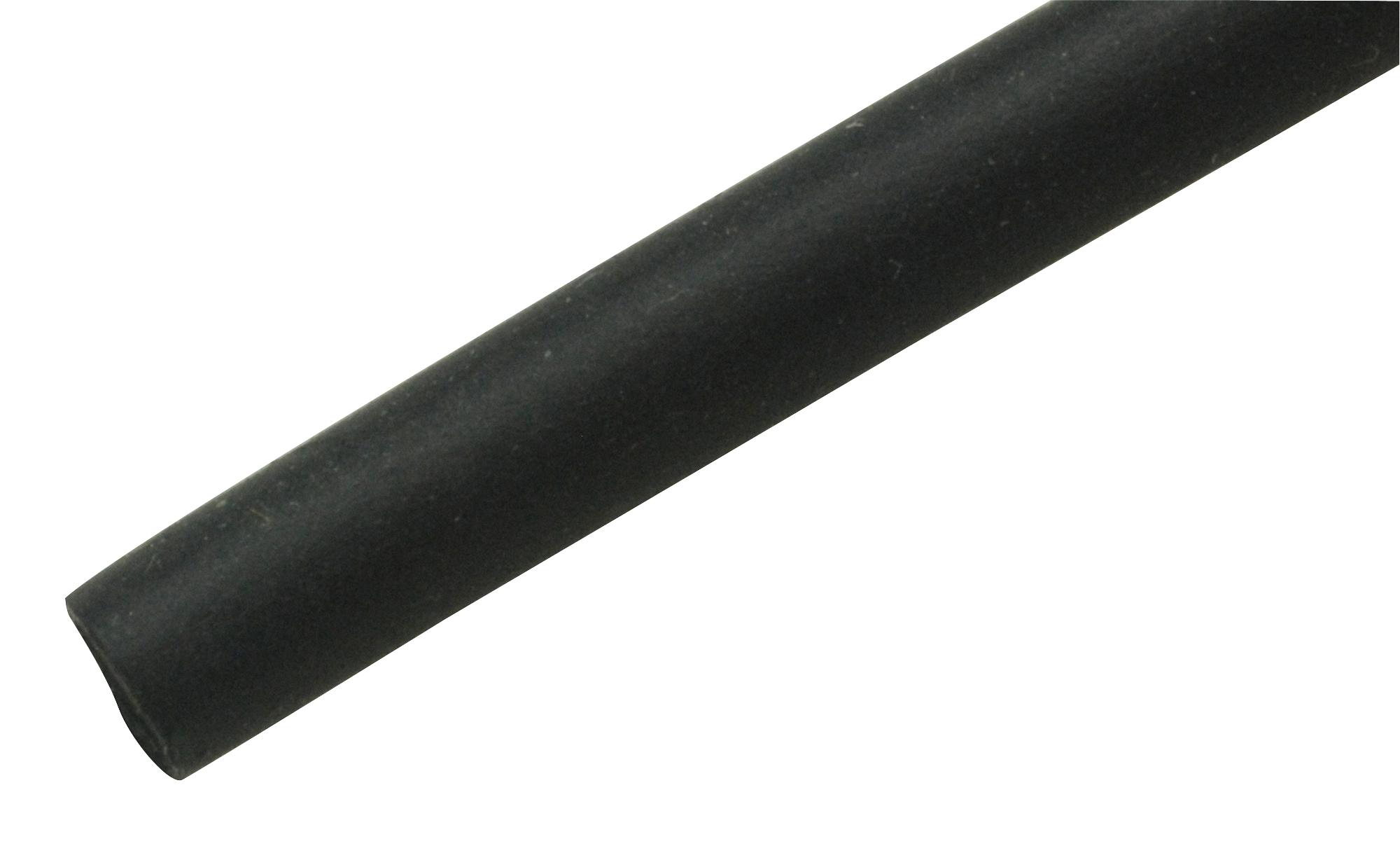

Qualtek Electronics Q2F3401MS50FT Heat Shrink Tubing
Heat shrink thin wall tubing Q2-F offers excellent electrical insulation, high flame retardancy, and flexibility for various industrial, commercial, and military applications. It provides protection for inline components, disconnect terminals, and splices, with a shrink ratio of 2:4 and operating temperatures from -55°C to +135°C. Made from environmentally friendly, flame-retardant materials free of PBBs and heavy metals, it ensures durability, resilience, and compliance with RoHS standards. Suitable for bundling wires, color-coding, and insulation, it offers easy application and reliable performance in demanding environments.
Qualtek Electronics Q2F3401MS50FT Heat Shrink Tubing Specifications:
- Material: No PBB's, PBBO's, PBBE’s, free of Cadmium and Lead
- Operating Temperature: -55°C to +135°C
- Shrink Ratio: 2:4
- Full Recovery Temperature: 100°C
- Minimum Shrink Temperature: 70°C
- Dielectric Strength: >20kV / mm
- Volume Resistance: >10^14 Ω·cm
- Tensile Strength: >14 MPa
- Ultimate Elongation: >600%
- Flammability: Passes VW-1, UL 94V-0
- Approvals: UL, CSA, SAE, Sony standards
- Colors: Black, red, blue, yellow, green, white, clear
- Temperature Rating: -55°C to +135°C
- Certifications: RoHS compliant
Buy the Buy Environmentally Friendly Heat Shrink Tubing Part Number Q2F3401MS50FT Online
Purchase the Q2-F heat shrink tubing now for versatile electrical insulation and protection solutions. This flexible, flame-retardant tubing with a 2:4 shrink ratio withstands temperatures up to +135°C. Suitable for military and industrial uses, it provides excellent resilience, environmental safety, and easy application. Made free of harmful substances, it ensures compliance with RoHS standards and offers reliable performance for wire bundling, color-coding, and insulating inline components. Order online for fast delivery and quality assurance today.
Get Q2-F heat shrink tubing today—designed for high durability, excellent resilience, and reliable insulation in demanding environments.
Frequently Asked Questions
Where can I buy Qualtek Electronics Q2F3401MS50FT?
You can click on the BUY or RFQ button to purchase Q2F3401MS50FT from an authorized Qualtek Electronics distributor.
How do I troubleshoot issues or seek technical support for part Q2F3401MS50FT?
You can download the Q2F3401MS50FT datasheet or visit the Qualtek Electronics website for support.
Who is the manufacturer of Q2F3401MS50FT?
Qualtek Electronics
