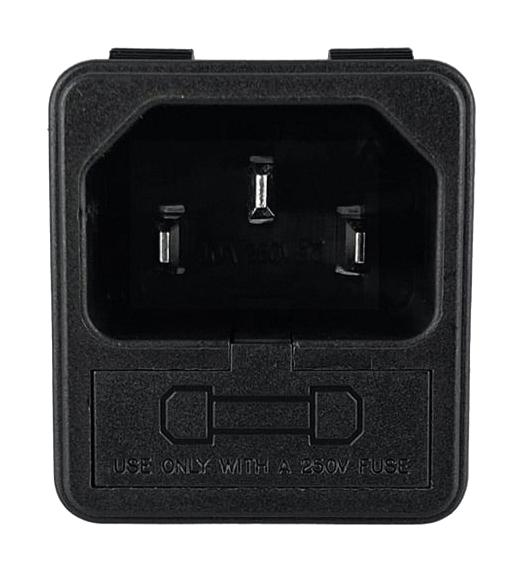

QUALTEK ELECTRONICS 723WX203 Power Inlet
This IEC 320 C14 power inlet with fuseholder offers easy snap-in installation and supports a maximum rating of 10A at 250VAC, meeting UL, CSA, and VDE standards. Designed for versatility, it accommodates panel thicknesses from 0.8 mm to 2.0 mm, with terminals connectable via .187 Q.D. or solder. The fuseholder includes one active fuse and one spare, suitable for applications requiring reliable power connection with fuse protection. Not compatible with fuses included, recommended size 5 x 20mm, ensuring safety and compliance in electronic device enclosures.
QUALTEK ELECTRONICS 723WX203 Power Inlet Specifications:
- Rating: 10A 250V AC
- Supports panel thickness: 0.8 mm to 2.0 mm
- Terminal connections: .187 Q.D. or solder
- Fuseholder includes one active and one spare fuse
- Fuse size recommended: 5 x 20mm
- Certifications: UL, CSA, VDE
- Insulation Resistance: 100M OHM 500V DC MIN
- Dielectric Strength: 2000VAC/1mA for one minute
- RoHS Compliant
- Maximum electrical rating: 10A at 250VAC
- Mounting: Snap-in design for easy installation
Buy the Buy Qualtek IEC 320 C14 Power Inlet Part Number 723WX203 Online
Purchase the Qualtek IEC 320 C14 Power Inlet with fuseholder online for secure and efficient power connectivity. Designed for versatile applications, it features snap-in mounting for simplified installation and supports panel thicknesses from 0.8 mm to 2.0 mm. Rated at 10A and 250VAC, meeting UL, CSA, and VDE standards, it ensures safety and compliance. The fuseholder includes a spare fuse, with fuses recommended to be 5 x 20mm for optimal performance. Reliable and easy to install, this power inlet is ideal for electronic device enclosures and industrial equipment.
Get Qualtek 723WX203 today—designed for reliable power connection with fuse protection and easy snap-in mounting.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 723WX203?
You can click on the BUY or RFQ button to purchase 723WX203 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 723WX203?
You can download the 723WX203 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 723WX203?
QUALTEK ELECTRONICS
