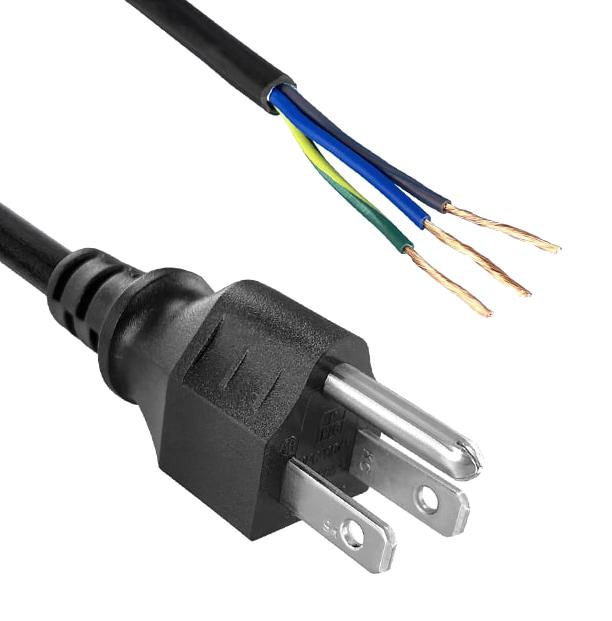

QUALTEK ELECTRONICS 31102201 NEMA 5-15P Power Cord
The QUALTEK ELECTRONICS 311022-01 is a power cord designed for various electrical applications. It incorporates a NEMA 5-15P plug and a ROJ 2” connector, providing a secure and reliable connection. The cord is constructed with SJT cordage, 16AWG / 3C, and is rated for 125V and 13A, making it suitable for powering a wide range of devices. It is UL and CSA approved, ensuring compliance with industry safety standards, and is RoHS compliant for environmentally conscious applications.
QUALTEK ELECTRONICS 31102201 NEMA 5-15P Power Cord Specifications:
- cordage: SJT, 16AWG / 3C, UNSHIELDED
- jacket_color: BLACK
- plug: NEMA 5-15P
- other_end: ROJ 2”, STRIP 5/8”
- temp_rating: 60°C
- rating: 125V 13A
- approvals: UL, CSA
- dim_range_0_1mm: 0-1
- tolerance_0_1mm: 0.15
- dim_range_1_6mm: 1-6
- tolerance_1_6mm: 0.20
- dim_range_6_18mm: 6-18
- tolerance_6_18mm: 0.30
- dim_range_18_50mm: 18-50
- tolerance_18_50mm: 0.50
- dim_range_50_120mm: 50-120
- tolerance_50_120mm: 0.70
- dim_range_120_250mm: 120-250
- tolerance_120_250mm: 0.90
- dim_range_250_500mm: 250-500
- tolerance_250_500mm: 1.20
- unit: in
