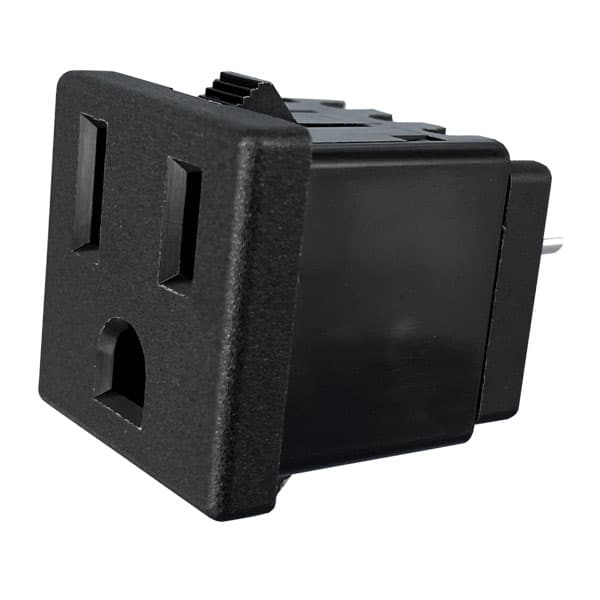

QUALTEK ELECTRONICS 739WX232 AC Receptacle
The Qualtek 739W-X2/32 AC receptacle is a durable and reliable solution for residential and commercial applications. Constructed with a nylon body and tin-plated brass contacts, this receptacle offers excellent electrical conductivity and long-term performance. It is designed to accommodate panel thicknesses between 0.8mm and 1.8mm and is rated for 15A at 125V AC. The receptacle is UL and cUL approved, ensuring compliance with industry safety standards. It is suitable for a variety of applications including wallplate installations and general-purpose power distribution.
QUALTEK ELECTRONICS 739WX232 AC Receptacle Specifications:
- Part Number: 739W-X2/32
- Description: AC RECEPTACLE
- Rating: 15A 125V AC
- Panel Thickness: 0.8~1.8mm
- Approvals: UL, cUL
- Material (Body): NYLON Black Color
- Material (Contact PIN): Brass Strip t=0.4mm Tin-Plated
- Dimension Tolerance: +/- PPC
- Unit: mm
Buy the 739W-X2/32 QUALTEK ELECTRONICS AC Receptacle | myMectronic
Purchase the Qualtek 739W-X2/32 AC Receptacle securely and conveniently online.
Buy Now
