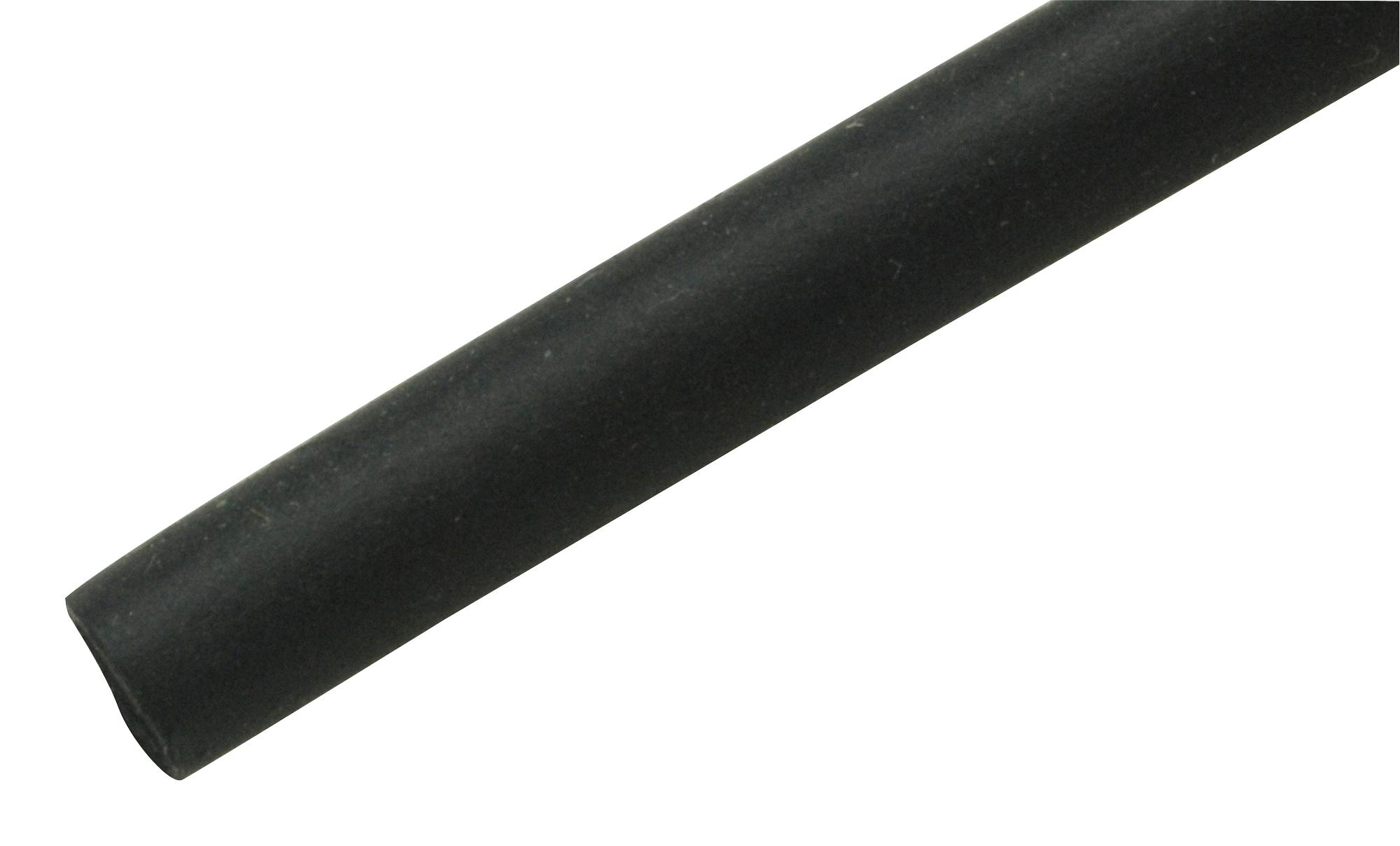

QUALTEK ELECTRONICS Q2F33201SS500FT Heat Shrink Tubing
Heat shrink thin wall tubing offers flexible, flame-retardant insulation for electrical and military applications. It withstands operating temperatures from -55°C to +135°C, with a shrink ratio of 2:4, providing protection and insulation for wires, splices, and connectors. Made of RoHS-compliant, environmentally friendly materials free of cadmium and lead, it features high tensile strength (>14 MPa), excellent elongation (>600%), and meets industry standards including SAE-AMS-DTL-23053/5. Available in multiple colors and sizes, it guarantees durability in demanding conditions with full recovery at 100°C and UL-rated flame resistance.
QUALTEK ELECTRONICS Q2F33201SS500FT Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Shrink Ratio: 2:4
- Material: Environmentally friendly, RoHS compliant, free of cadmium and lead
- Tensile Strength: >14 MPa
- Ultimate Elongation: >600%
- Longitudinal Shrinkage: 45%
- Dielectric Strength: >20kV/mm
- Voltage Withstand: AC2500V for 4 min, no breakdown
- Flammability: UL 94V-0, VW-1 rated
- Color: Black, red, blue, yellow, green, white, clear (class 2)
- Standards: SAE-AMS-DTL-23053/5 Class 1 & 3, Sony-SS-00259
- Dimensions: Various sizes from 6 mm to 159 mm diameter, thickness from 0.40 mm to 4.00 mm, lengths up to 1000 ft, packaged in boxes
- Certifications: UL Listed, RoHS Certified
Buy the Generic Series Heat Shrink Thin Wall Tubing: Q2F33201SS500FT
Purchase high-quality heat shrink tubing online for versatile electrical insulation and protection. Designed with a 2:4 shrink ratio, it ensures reliable performance across a wide temperature range from -55°C to +135°C. Suitable for both commercial and military applications, this flame-retardant tubing meets UL, CSA, and industry standards, offering high tensile strength and excellent elongation. Its environmentally friendly, RoHS-compliant material makes it safe and sustainable for all your wiring needs. Order now for fast delivery and durable insulation solutions.
Get Generic heat shrink thin wall tubing today—built for reliable electrical insulation and long-lasting durability.
